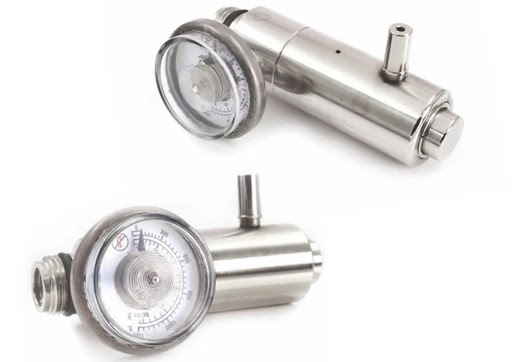

CR-32 Push-Type Calibration Regulator
Allows users to manually draw gas at a stable consistent flow whenever required with negligible flow drop-off.
Key features
- Push to flow, release to stop, at a fixed constant rate
- Fixed flow rate to order, from 0.1 to 8 litres per minute
- 5/8 in x 18 UN C10 cylinder inlet, 3/16 in barb outlet
- 83 bar maximum inlet, 0 to 103 bar inlet gauge
- Nickel plated brass cap and button with a brass piston, for non-reactive gases
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe CR-32 is a push type regulator for calibration gas cylinders. Pressing the head releases gas at a fixed, constant flow for as long as it is held, so an operator can draw test gas on demand without a separate valve and without the flow drifting as the cylinder empties. The flow rate is set at the factory to your detector's procedure, from 0.1 to 8 litres per minute, and the outlet pressure is 4.1 bar. The inlet is the 5/8 inch by 18 UN C10 cylinder thread and the outlet a 3/16 inch barb for detector tubing. Maximum inlet pressure is 83 bar with a nickel plated brass gauge reading to 103 bar. The cap and button are nickel plated brass with a brass piston, Viton seals, and this brass version is for non-reactive gases. It weighs 0.326 kg.
Specification
| Maximum Inlet Pressure | 83 bar |
|---|---|
| Setting Range | 4.1 bar outlet, fixed |
| In/Out Connections | 5/8 in x 18 UN (C10) inlet; 3/16 in barb outlet |
| Gas Compatibility | Non-reactive gases, brass version |
| Stages | single stage |
| Weight | 0.326 kg |
| Gauge | Inlet gauge, nickel plated brass, 0 to 103 bar |
| Material | Nickel plated brass cap and button; brass piston; Viton seals |
| Flow Rate | 0.1 to 8 L/min, fixed to order |
| Technology | Piston, push type |
