Our range of gas cylinder connections and accessories is designed for the safe connection of gas cylinders and gas bottles to regulators, manifolds and distribution systems. The range includes cylinder connectors manufactured to national and international standards including CGA, DISS, BS 341, DIN, ISO 5145 NEVOC, AFNOR, AS 2473, UNI, NEN 3268, ITC EP-6, IRAM and IBMT, together with high pressure gas hoses in PTFE or stainless steel, stainless steel pigtails, and cylinder valve gaskets for industrial, specialty and ultra-high purity gas applications.
Choosing the correct connection starts with the cylinder outlet standard and the gas being used, as each standard assigns connection types to specific gases. Direct cylinder connectors are typically used where equipment is mounted at the cylinder, while hoses and pigtails provide a flexible connection to remotely mounted regulators and manifolds. Hose ratings run from 70 bar to 360 bar depending on the bore, so check the rating at the bore you need. The categories below provide further information on each product type, with individual product pages detailing pressure ratings, bore sizes and connection specifications. DISS connections are commonly used for high purity and semiconductor gas systems.
Accessories by Type
Cylinder Connections

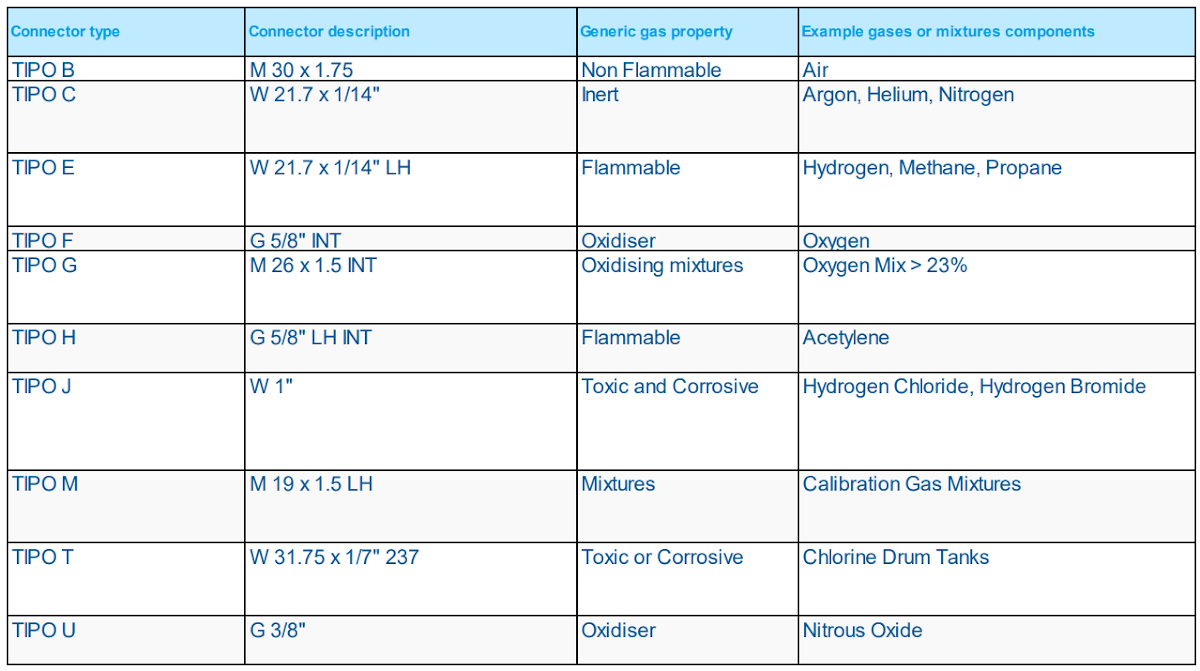

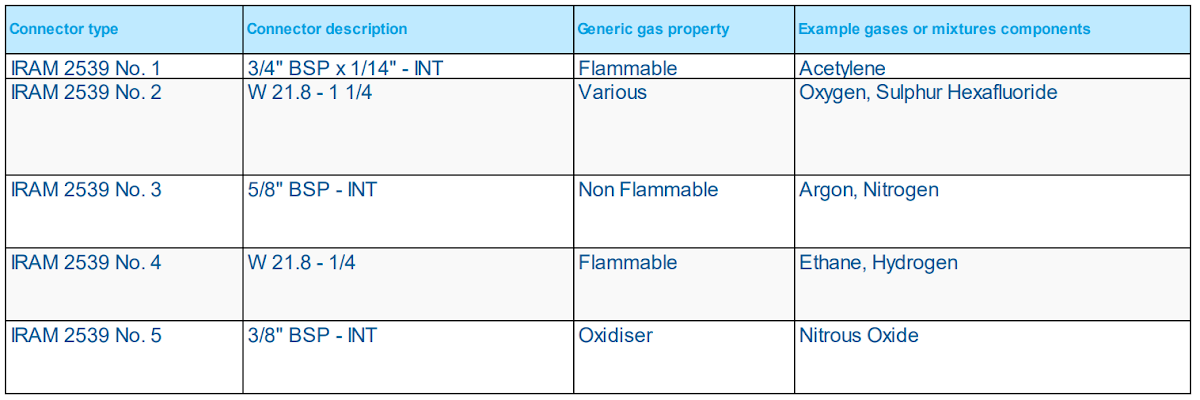

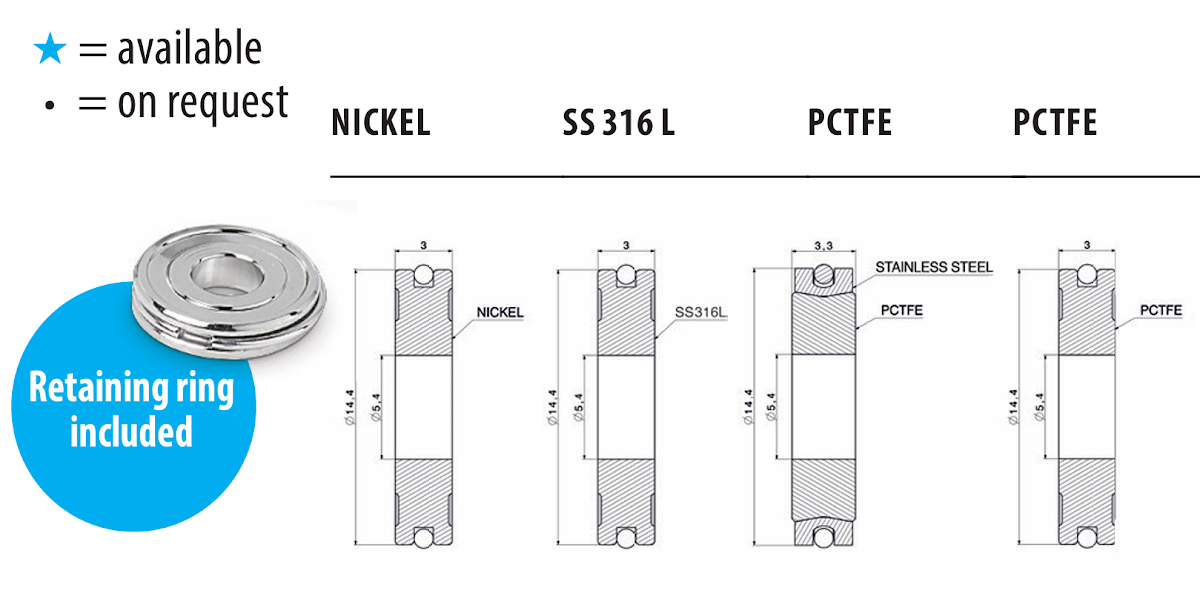

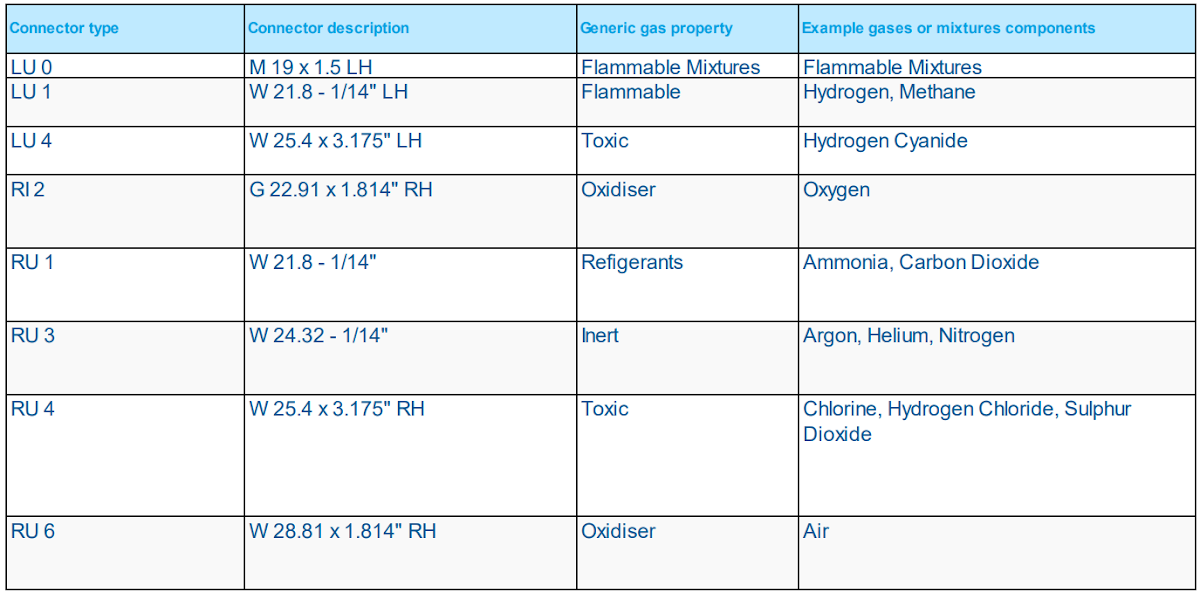

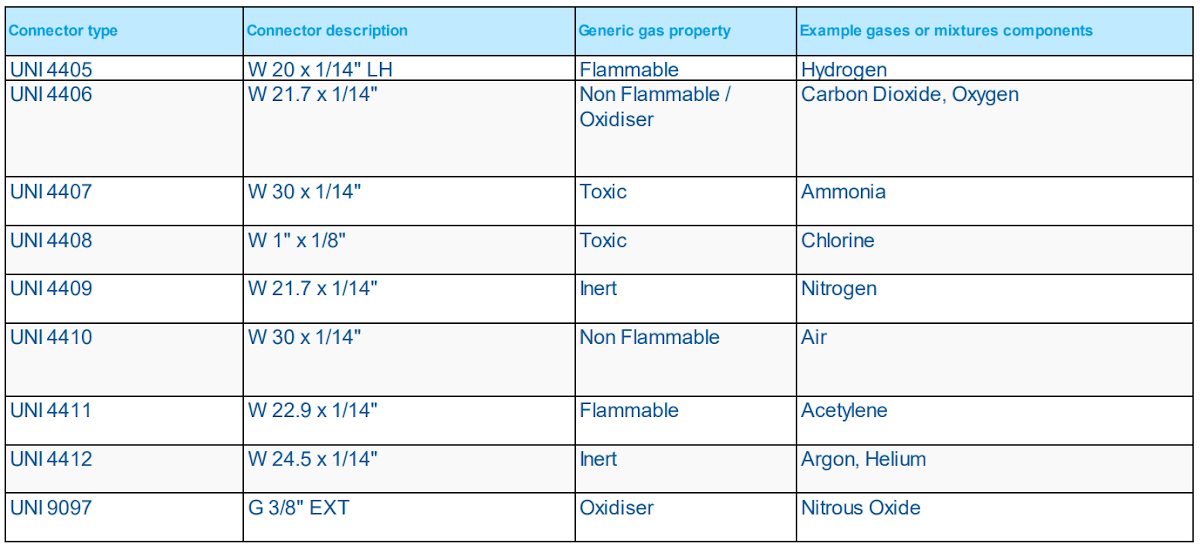

Cylinder connectors and nipples for the connection standards used around the world: CGA and DISS (American), BS 341 (British), DIN (German), ISO 5145 NEVOC (European), AFNOR (French), AS 2473 (Australian), UNI (Italian), NEN 3268 (Dutch), ITC EP-6 (Spanish), IRAM (Argentine) and IBMT (Brazilian), plus CGA and DISS 30 series cylinder valve gaskets. If you know the standard your cylinder or gas bottle uses, you know your connector.
13 products
High Pressure Hoses

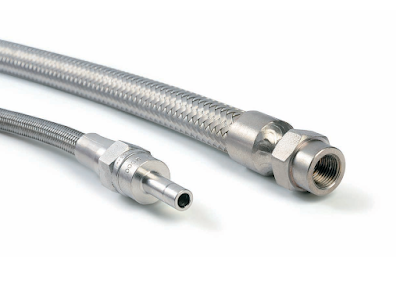

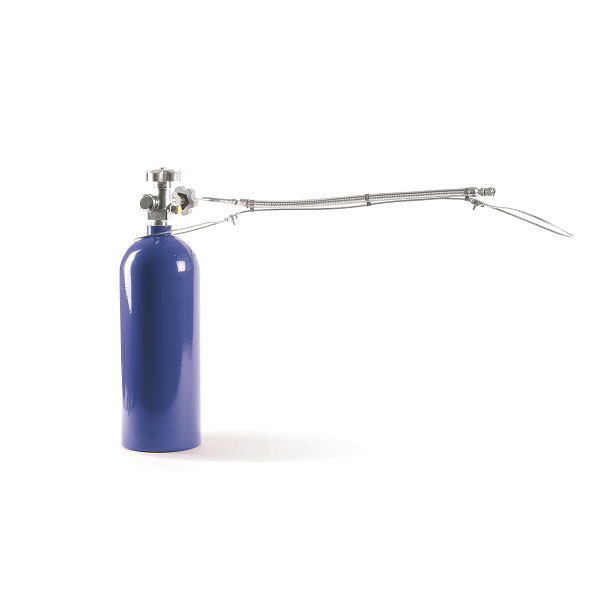

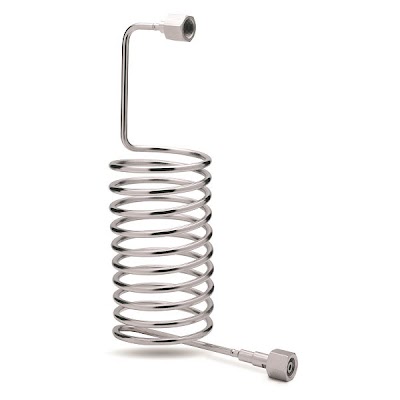

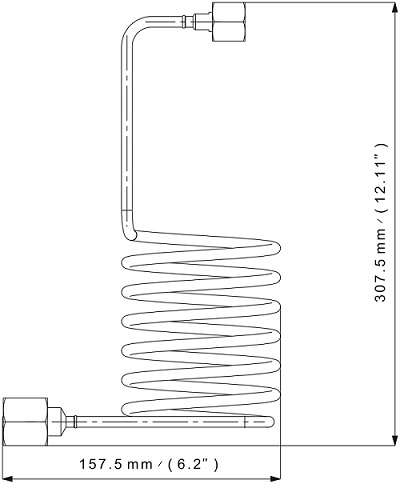

PTFE core and stainless steel corrugated core hoses with stainless steel braiding for high pressure gas, and straight or elbow pigtails for connecting cylinders to manifolds and regulators.
3 productsCommon questions
- What is a CGA connection?
- CGA is the Compressed Gas Association numbering system used in North America. Each number, such as CGA 580 or CGA 590, is a specific combination of thread, nipple and seat, assigned to a gas or group of gases. The numbering exists so that equipment set up for one gas group cannot be connected to a cylinder of another, which is why connectors are ordered by number rather than by thread size.
- What is the difference between CGA 580 and CGA 590?
- They are different outlet numbers in the same system and they are not interchangeable. The thread, nipple and seat differ, and each number is assigned to a particular gas or gas group. Rather than publish a gas by number table that could be misread at the cylinder, we ask for the number stamped on your cylinder valve, or the gas and the standard, and supply the connector that matches.

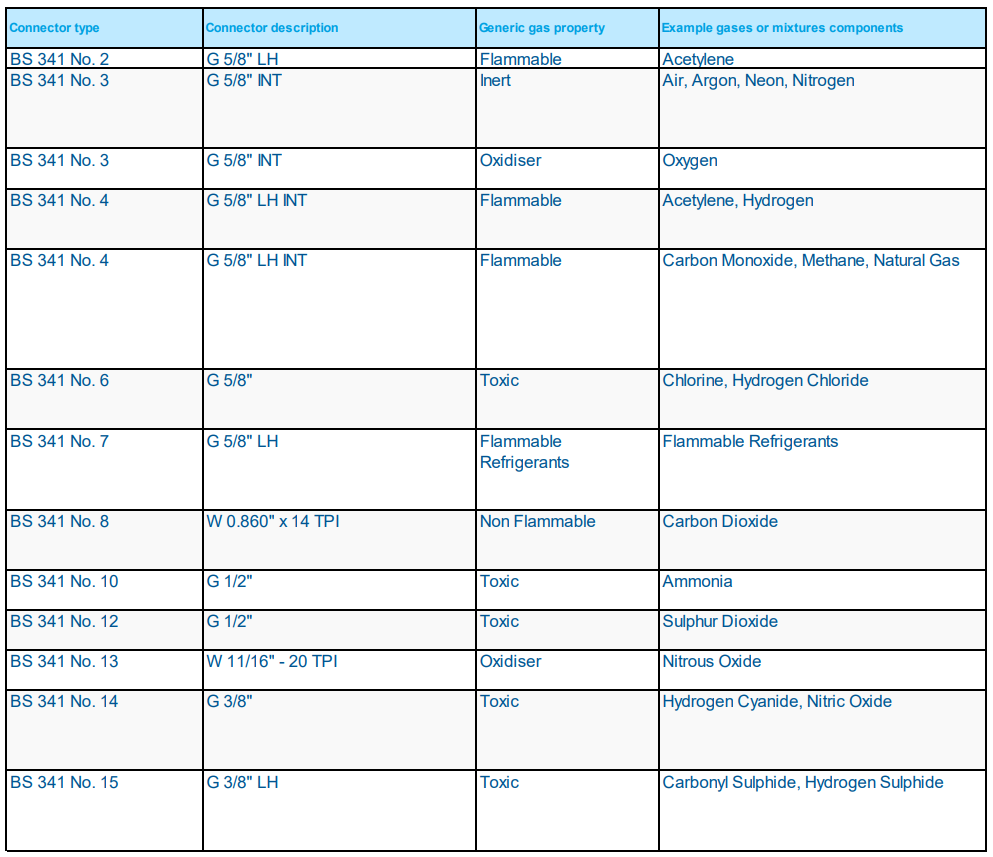

- What is BS 341?
- BS 341 is the British Standard for cylinder valve outlet connections, and it is the one you will meet most often on UK filled cylinders. Outlets are identified by number, for example BS 341 No. 3, and each number belongs to a gas or group of gases. Connectors in this range are made to BS 341 No. 3 and No. 4 as standard, with other numbers to order.
Not sure what you need?
Send us the gas, the pressure and the connection and we will come back with the right unit.
