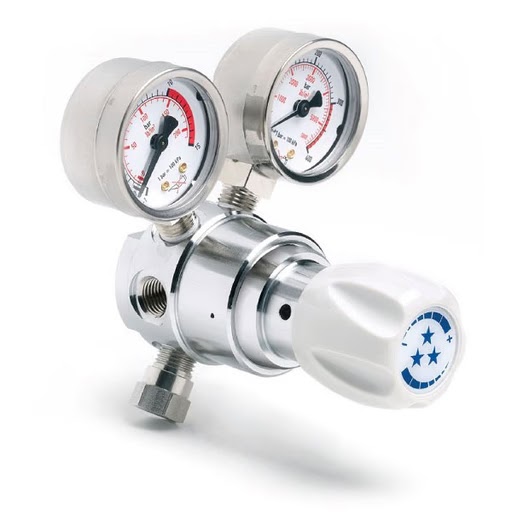

Single Stage - Series SC 280-380
High-pressure regulator single-stage diaphragm technology + cartridge.
Key features
- Cartridge seat technology with sintered inlet filter
- Outlet settings 1.5 to 50 bar by version
- 200 and 300 bar inlet versions
- ATEX compliant handwheel
- Oxygen use with brass and stainless versions
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteA single stage cylinder regulator built on cartridge seat technology, with a sintered inlet filter protecting the mechanism, for pure, inert and corrosive gases in duties such as calibration gas, controlled atmosphere and high purity carrier gas. Inlet versions are rated 200 and 300 bar, outlet settings run from 1.5 up to 50 bar depending on version, and the flow coefficient is Cv 0.1. The handwheel complies with ATEX, a shut off valve can be fitted, and both brass and stainless steel versions are suitable for oxygen. The dual stage version of the same design is the DC 280-380.
Specification
| Maximum Inlet Pressure | 200 / 300 bar versions |
|---|---|
| Setting Range | 1.5 / 4 / 10 / 16 / 35 / 50 bar versions |
| In/Out Connections | 1/4 in NPT inlet and outlet |
| Gas Compatibility | Oxygen service on the brass and stainless steel versions |
| Stages | single stage |
| Temperature | -40 to +60 C |
| Weight | about 1.1 kg |
| Cv | 0.1 |
| Body Material | chrome plated brass or stainless steel |
| Technology | cartridge seat, Hastelloy diaphragm |
| Seat Material | PCTFE |
