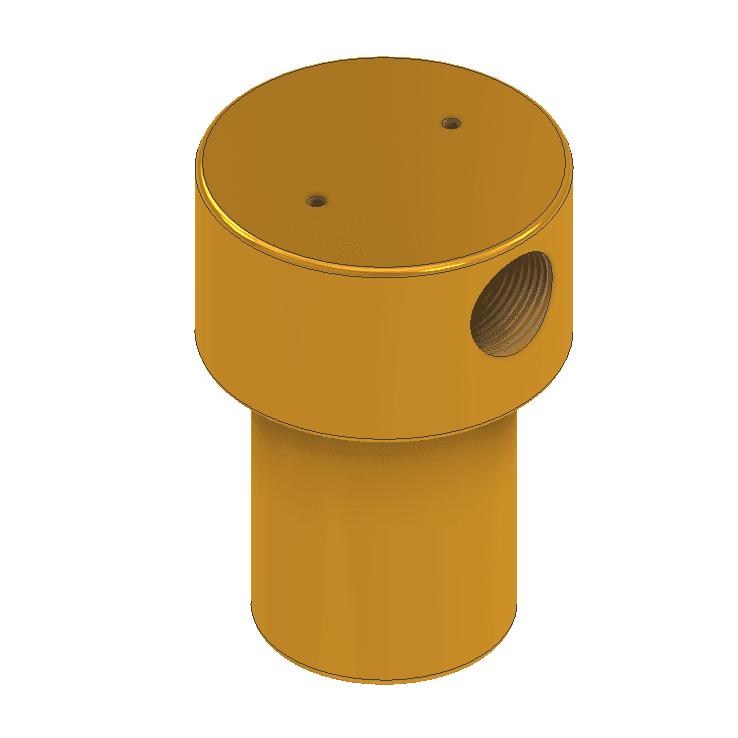

PHF BS2 CF10 Filter in Brass
Maximum inlet pressure 60 bar. In/out connections 3/4 and 1 inch. Filtration degree 0.01 micron.
Key features
- 0.01 micron filtration, the finest grade in the range
- 60 bar maximum inlet pressure
- 3/4 inch and 1 inch connections, G female or NPT female
- Brass body and inner parts, gases and liquids
- PED 2014/68/EU, panel bracket and wear parts kit available
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe PHF BS2 CF10 is a fine in-line filter in brass for gas and liquid lines at the larger pipe sizes, with 3/4 inch and 1 inch connections in G female or NPT female thread. It filters to 0.01 micron, which is the finest grade in the range, and it is rated to 60 bar maximum inlet pressure with a working temperature of minus 20 to plus 80 degrees C. Body and inner parts are brass, and the unit carries PED 2014/68/EU conformity. A panel mounting bracket is available, and the unit can be supplied degreased for oxygen or pure gas service, and with a wear parts kit. Choose this unit where a brass filter at the 3/4 or 1 inch size has to take out very fine particulate; the PHF BS2 F10 is the coarser 5 and 50 micron alternative in the same body.
Conformity
PED 2014/68/EU
Specification
| Filtration Degree | 0.01 micron |
|---|---|
| Maximum Inlet Pressure | 60 bar |
| In/Out Connections | 3/4 in and 1 in, G female or NPT female |
| Body Material | Brass |
| Temperature | -20 to +80 C, other ranges on request |
| Weight | 3.9 kg |
| Inner Parts | Brass |
| Accessories | Panel mounting bracket; wear parts kit |
Gases
