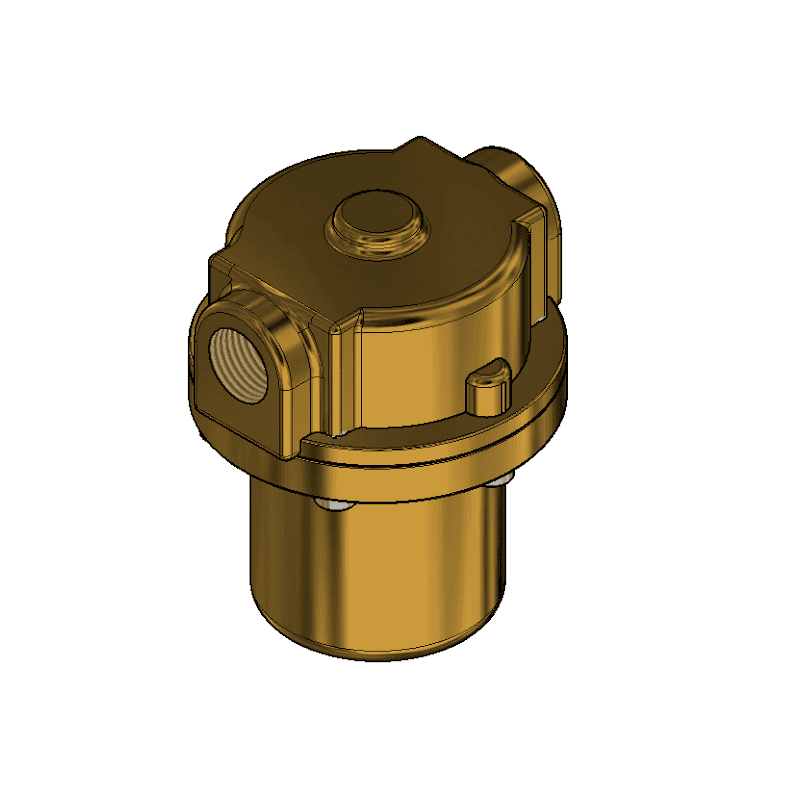

PHF BS2 F12 Filter in Brass
Maximum inlet pressure 60 bar. In/out connections 1/4 and 1/2 inch. Filtration degree 5 and 50 micron.
Key features
- 5 or 50 micron elements for coarse particulate
- 60 bar maximum inlet pressure
- 1/4 inch and 1/2 inch connections, G female or NPT female
- Brass body and inner parts, gases and liquids
- PED 2014/68/EU, 2.2 kg, panel bracket available
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe PHF BS2 F12 is a brass in-line filter for gas and liquid lines at 1/4 inch and 1/2 inch, with elements of 5 or 50 micron for coarser particulate. Maximum inlet pressure is 60 bar and the working temperature range is minus 20 to plus 80 degrees C. The body and inner parts are brass, the unit weighs 2.2 kg, and it carries PED 2014/68/EU conformity. A panel mounting bracket and a wear parts kit are available, and the filter can be supplied degreased for oxygen or pure gas service. It is the coarse option at the small pipe sizes; the PHF BS2 CF12 filters to 0.01 micron in the same body where the line needs it.
Conformity
PED 2014/68/EU
Specification
| Filtration Degree | 5 or 50 micron |
|---|---|
| Maximum Inlet Pressure | 60 bar |
| In/Out Connections | 1/4 in and 1/2 in, G female or NPT female |
| Body Material | Brass |
| Temperature | -20 to +80 C, other ranges on request |
| Weight | 2.2 kg |
| Inner Parts | Brass |
| Accessories | Panel mounting bracket; wear parts kit |
Gases
