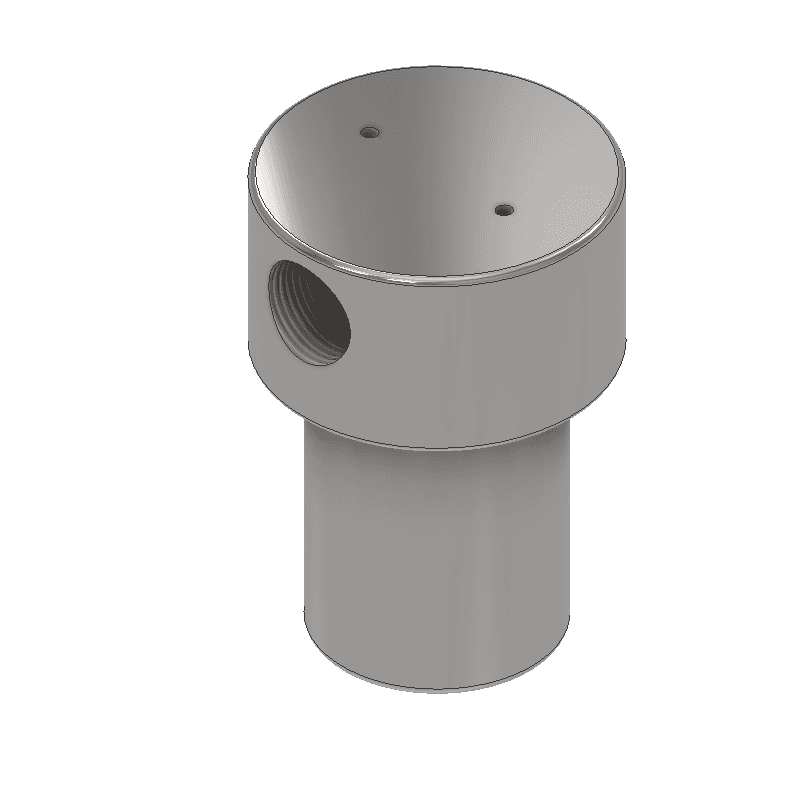

PHF CS2 CF10 Filter in AISI 316L
Maximum inlet pressure 60 bar threaded version. In/out connections 3/4 and 1 inch.
Key features
- 0.01 micron filtration in AISI 316L stainless steel
- 60 bar maximum inlet on the threaded version; flanged and clamp versions available
- 3/4 inch and 1 inch connections, G female or NPT female
- PED 2014/68/EU and ATEX 2014/34/EU
- Degreased versions for oxygen and pure gas service; panel bracket available
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe PHF CS2 CF10 is a fine in-line filter in AISI 316L stainless steel for gas lines at 3/4 inch and 1 inch, filtering to 0.01 micron. The threaded version, in G female or NPT female, is rated to 60 bar maximum inlet pressure; flanged versions to UNI EN 1092-1 or ASME B16.5 are rated to the flange standard, and a clamp connection is available on request. Body and inner parts are 316L for corrosion resistance, the working temperature is minus 20 to plus 80 degrees C, and the unit carries PED 2014/68/EU and ATEX 2014/34/EU conformity. The threaded version weighs 3.3 kg and takes a panel mounting bracket. It can be supplied degreased for oxygen or pure gas service, and the PHF CS2 F10 is the 5 and 50 micron alternative in the same body.
Conformity
PED 2014/68/EU; ATEX 2014/34/EU
Specification
| Filtration Degree | 0.01 micron |
|---|---|
| Maximum Inlet Pressure | 60 bar, threaded version; flanged version to the flange standard |
| In/Out Connections | 3/4 in and 1 in, G female or NPT female; flanged to UNI EN 1092-1 or ASME B16.5; clamp on request |
| Body Material | AISI 316L stainless steel |
| Temperature | -20 to +80 C, other ranges on request |
| Weight | 3.3 kg, threaded version |
| Inner Parts | AISI 316L stainless steel |
| Accessories | Panel mounting bracket; wear parts kit |
