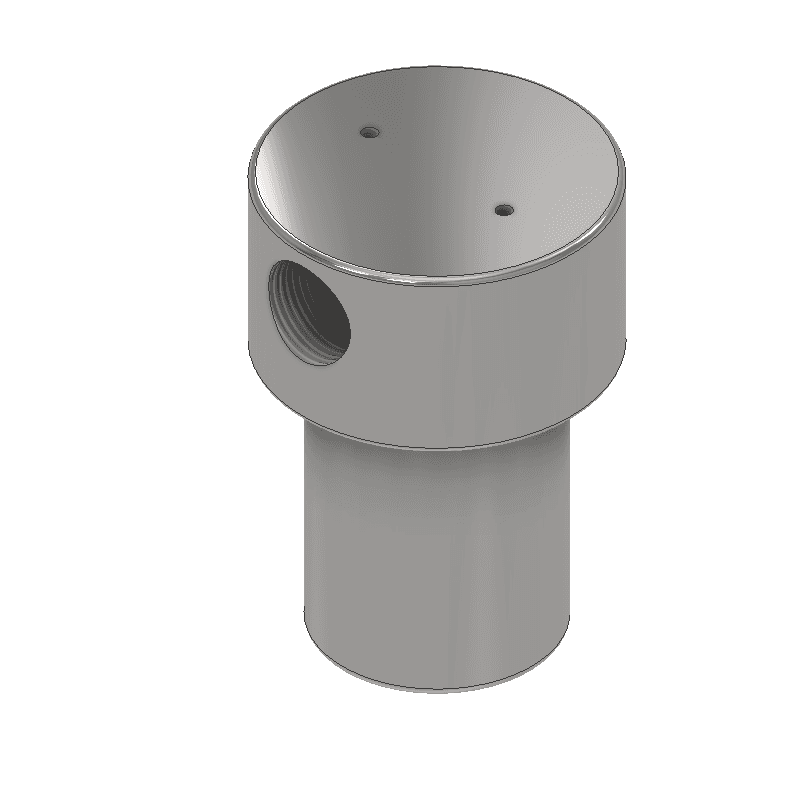

PHF CS2 F10 Filter in AISI 316L

PHF CS2 F10 Filter in AISI 316L

Model PHF CS2 F10 · Stainless Steel Filters

Maximum inlet pressure 60 bar threaded version. In/out connections 3/4 and 1 inch.

Filtration Degree5 or 50 micron
Maximum Inlet Pressure60 bar, threaded version; flanged version to the flange standard
In/Out Connections3/4 in and 1 in, G female or NPT female; flanged to UNI EN 1092-1 or ASME B16.5; clamp on request

Key features

  • 5 or 50 micron elements in AISI 316L stainless steel
  • 60 bar maximum inlet on the threaded version; flanged and clamp versions available
  • 3/4 inch and 1 inch connections, G female or NPT female
  • Seal choice sets the temperature range: FPM to +200 C, EPDM to -40 C
  • PED 2014/68/EU and ATEX 2014/34/EU, gases and liquids

Enquire about this product

Priced to your specification. Most enquiries are answered the same working day.

Request a quote
UK stock and next-day dispatch on held lines
Technical selection support before you order

The PHF CS2 F10 is an AISI 316L stainless steel in-line filter for gas and liquid lines at 3/4 inch and 1 inch, with elements of 5 or 50 micron for coarser particulate. The threaded version in G female or NPT female is rated to 60 bar maximum inlet pressure; flanged versions to UNI EN 1092-1 or ASME B16.5 take the rating of the flange standard, and a clamp connection is available on request. The working temperature range depends on the seal material, minus 25 to plus 200 degrees C with FPM seals or minus 40 to plus 175 with EPDM. Body and inner parts are 316L, the unit carries PED 2014/68/EU and ATEX 2014/34/EU conformity, and the threaded version weighs 3.3 kg. A panel bracket and degreased versions for oxygen or pure gas service are available. For fine filtration in the same body, the PHF CS2 CF10 filters to 0.01 micron.

Conformity

PED 2014/68/EU; ATEX 2014/34/EU

Specification

Filtration Degree5 or 50 micron
Maximum Inlet Pressure60 bar, threaded version; flanged version to the flange standard
In/Out Connections3/4 in and 1 in, G female or NPT female; flanged to UNI EN 1092-1 or ASME B16.5; clamp on request
Body MaterialAISI 316L stainless steel
Temperature-25 to +200 C with FPM seals; -40 to +175 C with EPDM seals
Weight3.3 kg, threaded version
Inner PartsAISI 316L stainless steel
AccessoriesPanel mounting bracket; wear parts kit
