Tap – Straight Nozzle
Request a quote

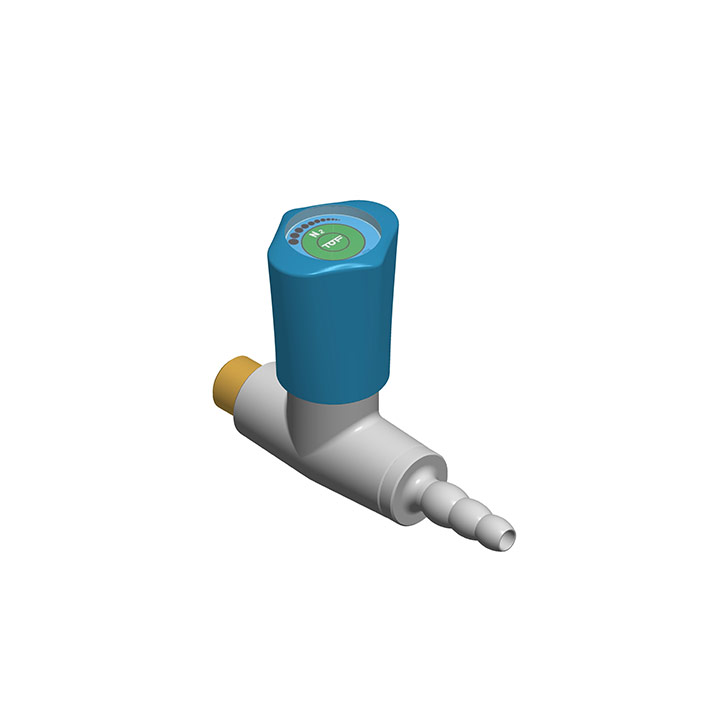

Tap – Straight Nozzle
Wall-Mounted Gas Taps & User Points
Wall-mounted gas tap with straight outlet nozzle for direct gas access.
Outlets1
Gas CompatibilityBurning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version
In/Out ConnectionsG3/8 or G1/2 parallel thread to ISO 228-1
MountingWall
Key features
- Straight nozzle for the most direct outlet path
- Shallow projection from the wall
- The default form where no angle is needed
- Wall mounted laboratory gas outlet
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A wall mounted gas tap with a straight outlet nozzle, giving direct access to the gas with the shortest path from valve to hose. The straight form is the default where nothing about the position calls for an angle, and it keeps the fitting shallow against the wall.
Specification
| Outlets | 1 |
|---|---|
| Gas Compatibility | Burning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version |
| In/Out Connections | G3/8 or G1/2 parallel thread to ISO 228-1 |
| Mounting | Wall |
| Outlet Nozzle | Fixed olive form to DIN 12898, straight |
| Maximum Inlet Pressure | Burning gas 0.2 bar, liquid gas 2 bar, steam 4 bar, compressed air 10 bar, industrial gas 10 bar, depending on the version supplied |
| Body Material | Brass, CuZn40Pb2, epoxy coated |
| Temperature | -30 to +150 C (steam versions to 125 C) |
| Standard | Handle colour coding to DIN EN 13792; burning gas versions to DIN-DVGW |
