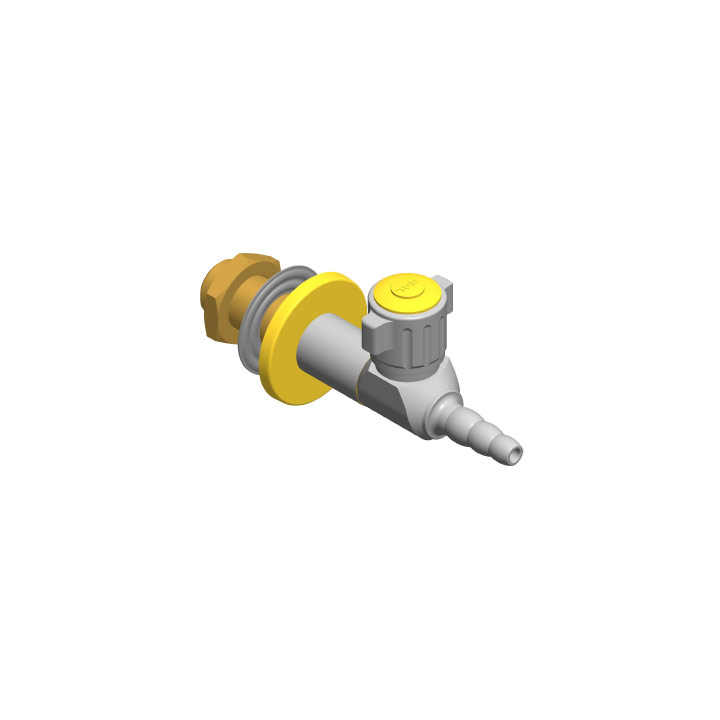

Wall Gas Tap
Wall-Mounted Gas Taps & User Points
General-purpose wall-mounted gas outlet for laboratory gas delivery.
Outlets1
Gas CompatibilityBurning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version
In/Out ConnectionsG3/8 or G1/2 parallel thread to ISO 228-1
MountingWall
Key features
- Standard wall mounted gas outlet
- No angled nozzle or additional adjustment stage
- Specified in quantity across standard positions
- For general laboratory gas delivery
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A general purpose wall mounted gas outlet for laboratory gas delivery. The plain unit in the wall range, without an angled nozzle, an inclined handle or a fine adjustment stage, for positions where a straightforward outlet is all that is wanted. Usually specified in quantity across a laboratory where most positions are standard and only a few need something particular.
Specification
| Outlets | 1 |
|---|---|
| Gas Compatibility | Burning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version |
| In/Out Connections | G3/8 or G1/2 parallel thread to ISO 228-1 |
| Mounting | Wall |
| Outlet Nozzle | Fixed olive form to DIN 12898 |
| Maximum Inlet Pressure | Burning gas 0.2 bar, liquid gas 2 bar, steam 4 bar, compressed air 10 bar, industrial gas 10 bar, depending on the version supplied |
| Body Material | Brass, CuZn40Pb2, epoxy coated |
| Temperature | -30 to +150 C (steam versions to 125 C) |
| Standard | Handle colour coding to DIN EN 13792; burning gas versions to DIN-DVGW |
Downloads
No documents on file for this product yet.
