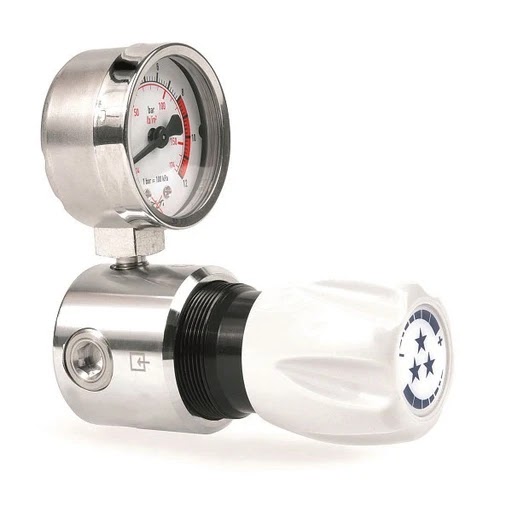

S Series 20 In-Line Regulator
Model S20 · In-Line Regulators
Low pressure regulator single stage bellow technology.
Maximum Inlet Pressure50 bar (20 bar acetylene version)
Setting Range1 / 3 / 10 bar versions (1.5 bar acetylene version)
In/Out ConnectionsG 3/8 or 1/4 in NPT inlet and outlet
Gas CompatibilityOxygen service at inlet pressures up to 30 bar
Key features
- Bellows for precise, repeatable outlet pressure
- Outlet versions 1, 3 and 10 bar
- 50 bar inlet, 20 bar on the acetylene version
- Compact, wall or panel mountable
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A bellows regulator for specialty gas lines and point of use outlets where repeatability and a precise outlet pressure matter, such as ICP spectrometer supply, shielding gas and chromatography support gas. The bellows gives a wide range of precise outlet settings in a compact body: versions of 1, 3 and 10 bar from a 50 bar inlet, with nominal flows of 2 to 3.5 Nm3/h of nitrogen. Bronze bellows, or AISI 316L on the stainless version, G 3/8 or 1/4 inch NPT ports, rear inlet as standard, and an acetylene version rated 20 bar inlet with a 1.5 bar outlet.
Specification
| Maximum Inlet Pressure | 50 bar (20 bar acetylene version) |
|---|---|
| Setting Range | 1 / 3 / 10 bar versions (1.5 bar acetylene version) |
| In/Out Connections | G 3/8 or 1/4 in NPT inlet and outlet |
| Gas Compatibility | Oxygen service at inlet pressures up to 30 bar |
| Stages | single stage |
| Temperature | -20 to +60 C |
| Weight | about 0.5 kg |
| Gauge | low pressure, M10 x 1 or 1/4 in NPT |
| Body Material | chrome plated brass or stainless steel |
| Technology | bellows |
| Seat Material | EPDM (seat gasket) |
Gases
AcetyleneOxygenHydrogen
