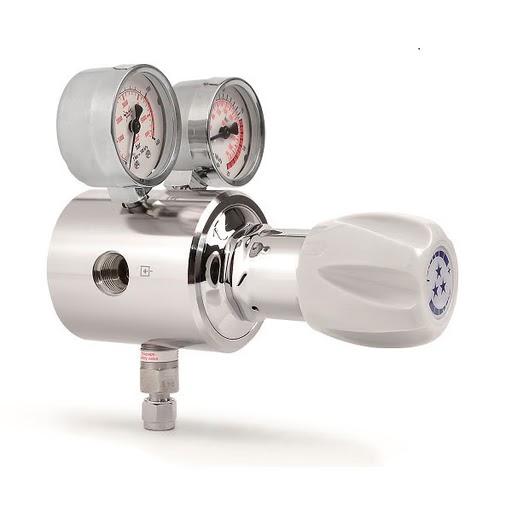

Series S 800
Model S800 · Single Stage Cylinder Regulators
High-pressure regulator single-stage diaphragm technology + BV
Maximum Inlet Pressure300 bar
Setting Range10 / 16 / 25 / 50 bar versions
In/Out Connections16 x 1.336 inlet and G 3/8 outlet, or 1/4 in NPT inlet and outlet
Key features
- Balanced valve steadies outlet against inlet fluctuations
- Nominal flows up to 100 Nm3/h nitrogen
- Outlet settings 10 to 50 bar
- Hastelloy diaphragm on 25 and 50 bar versions
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A single stage regulator built on balanced valve technology, which reduces the effect of inlet pressure fluctuations on the outlet setting and keeps flow stable even at high rates. It suits high flow, high purity duties such as laser gas supply, and is also used in nuclear research where flow and outlet precision both matter. Inlet pressure is 300 bar with outlet settings of 10, 16, 25 and 50 bar and nominal flows up to 100 Nm3/h of nitrogen. The diaphragm is AISI 304, with Hastelloy on the 25 and 50 bar versions.
Specification
| Maximum Inlet Pressure | 300 bar |
|---|---|
| Setting Range | 10 / 16 / 25 / 50 bar versions |
| In/Out Connections | 16 x 1.336 inlet and G 3/8 outlet, or 1/4 in NPT inlet and outlet |
| Stages | single stage |
| Temperature | -40 to +60 C |
| Weight | about 2.4 kg |
| Seat Material | PCTFE |
| Technology | balanced valve, diaphragm |
Gases
Hydrogen
