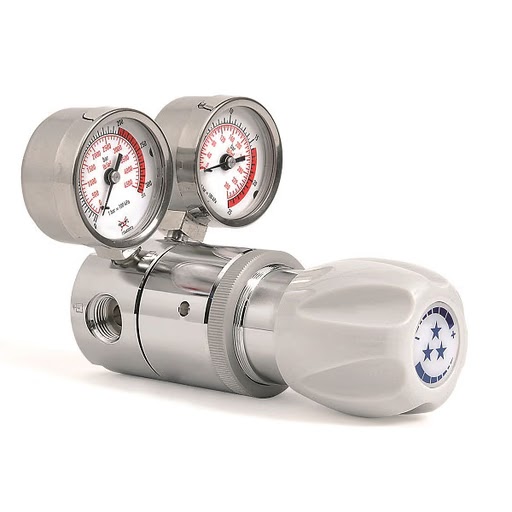

Single Stage - Series S 400
Piston technology offering precise gas control for non-corrosive or toxic technical-grade gases up to a purity of 99.995%.
Key features
- Outlet adjustable from 20 to 200 bar
- 300 bar inlet rating
- AISI 316L piston, PCTFE seat
- Downstream decompression via the handwheel
- Panel mounts on the rear thread
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteA single stage piston regulator for high outlet pressures, adjustable from 20 to 200 bar off a 300 bar inlet, which suits pressurising tanks, leak detection and pipe venting. The piston is AISI 316L and the seat PCTFE, with a nominal flow of 30 Nm3/h of nitrogen. Turning the handwheel anticlockwise decompresses the downstream control system, a safety valve can be connected, the rear thread allows panel mounting, and an outlet shut off valve can be fitted. Oxygen service is available on the brass version only.
Specification
| Maximum Inlet Pressure | 300 bar |
|---|---|
| Setting Range | 20 to 200 bar |
| In/Out Connections | 16 x 1.336 inlet and G 3/8 outlet, or 1/4 in NPT inlet and outlet |
| Gas Compatibility | Oxygen service on the brass version only |
| Stages | single stage |
| Temperature | -40 to +60 C |
| Weight | about 1.6 kg |
| Seat Material | PCTFE |
| Technology | piston, AISI 316L |
