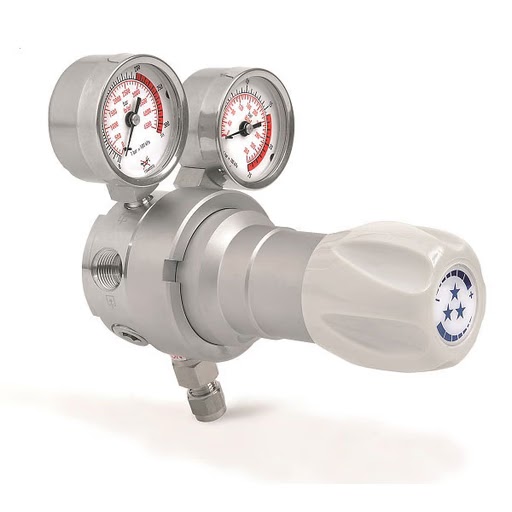

Single Stage - Series SI 220
High-pressure regulator single-stage diaphragm technology. For corrosive gas application.
Key features
- Threadless, springless design against contamination
- Low dead volume for proper purging
- Outlet settings 3 to 50 bar
- Helium leak rate 3 x 10-9 mbar.l/s
- Stainless version oxygen rated to 30 bar inlet
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteA single stage regulator for corrosive gases in ultra high purity applications and research laboratories, with a threadless, springless design against contamination risk and a low dead volume so the regulator purges properly. Inlet pressure is 200 bar with outlet settings of 3, 15, 25 and 50 bar, the diaphragm is Hastelloy, the seat PCTFE, and the helium leak rate is 3 x 10-9 mbar.l/s. The stainless steel version is suitable for oxygen at inlet pressures up to 30 bar. It panel mounts on the rear thread, and a shut off or needle valve can be fitted at the outlet.
Specification
| Maximum Inlet Pressure | 200 bar |
|---|---|
| Setting Range | 3 / 15 / 25 / 50 bar versions |
| In/Out Connections | 16 x 1.336 inlet, G 3/8 outlet |
| Gas Compatibility | Oxygen service on the stainless steel version at inlet pressures up to 30 bar |
| Stages | single stage |
| Temperature | -20 to +60 C |
| Weight | about 2.0 kg |
| Seat Material | PCTFE |
| Technology | threadless, springless, Hastelloy diaphragm |
