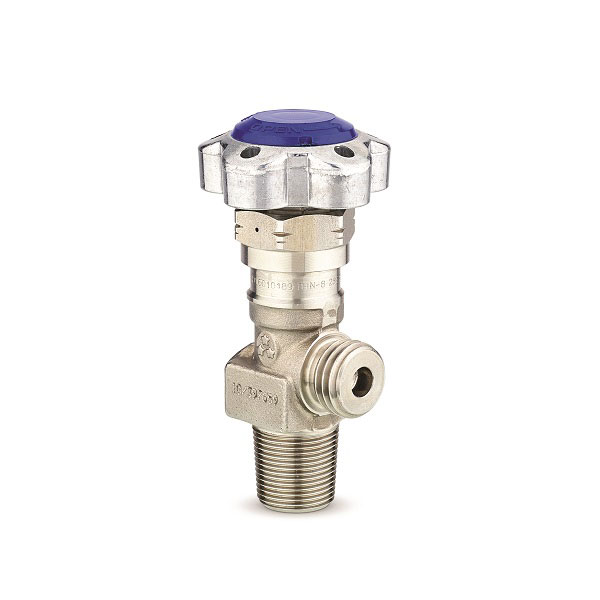

Cylinder valves for corrosive gases – D160S
Stainless steel high‑pressure valve with sturdy 2‑piece stem and soft seat for clean, reliable corrosive‑gas control.
Key features
- Packed stem valve for corrosive and toxic gases
- 6 mm orifice, 200 bar, Cv 0.9
- Two piece stem, non rotating lower spindle
- Self adjusting V packings, secondary o-ring seal
- Stainless steel or brass bodies
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteA packed type cylinder valve for high purity, corrosive and toxic gases, rated 200 bar with a 6 mm orifice and Cv 0.9. A sturdy two piece stem reduces particle generation, the lower spindle does not rotate so tightness holds through the valve's life, and there are no particle shedding threads in the gas wetted area. Self adjusting V packings on disc springs cover -40 to +65 C, a left hand locking nut secures the mechanism against over torque, o-rings behind the packings give a secondary seal that keeps humidity away from the wetted area, and the soft seat gives low operating torque and is fixed with a special screw for robustness. Bodies in AISI 303 or 316L stainless steel, brass CW617N or ASB, marked to TPED.
Specification
| Orifice | 6 mm |
|---|---|
| Maximum Inlet Pressure | 200 bar |
| In/Out Connections | to national or international standards and customer specification |
| Cv | 0.9 |
| Temperature | -40 to +65 C |
| Body Material | AISI 303 or AISI 316L stainless steel, brass CW617N or ASB |
| Technology | packed type cylinder valve, two piece stem, soft seat |
