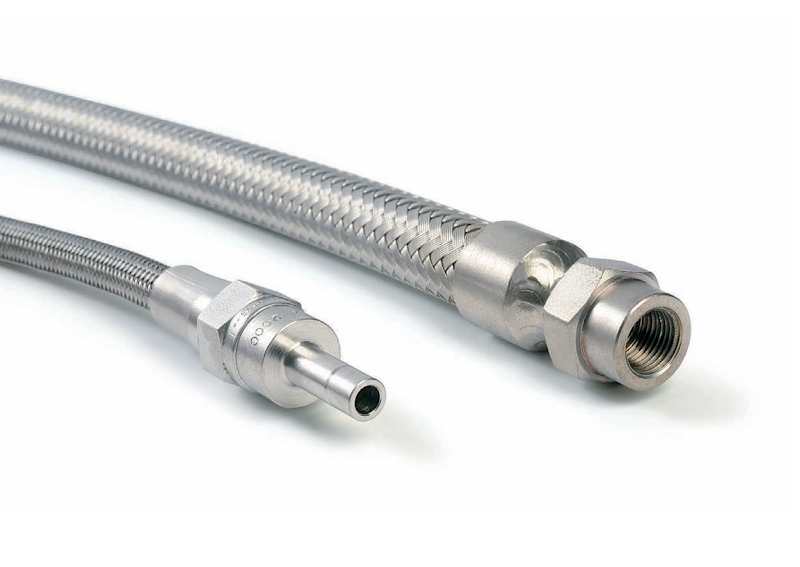

PTFE Core / Stainless Steel Braided Hose
Durable stainless steel double braided hose with PTFE core, compatible with neutral and corrosive gases. Rated to 300 Bar with optional safety cable and elbow version.
Key features
- PTFE inner tube, stainless steel 304L double braid
- 300 bar at DN6 down to 80 bar at DN25 by bore
- Lengths from 350 mm to 3000 mm
- Ends: tube, pipe, weld, face seal or cylinder connection
- Safety cable fitted as standard, elbow versions to order
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteA high pressure flexible hose, the FX01 type, with a PTFE inner tube inside a stainless steel 304L double braid and stainless steel end connections, for connecting supply boards, switchover boards and other equipment to the cylinders at the source of gas supply. Maximum operating pressure depends on the bore: 300 bar at DN6, 200 bar at DN10, 125 bar at DN16, 100 bar at DN20 and 80 bar at DN25. Lengths run from 350 mm to 3000 mm, and the ends can be tube, pipe, weld or face seal fittings or a cylinder connection to AFNOR, DIN, BS, CGA, UNI or FTSC 300 bar. A stainless steel safety cable is fitted as standard, with a version without it and elbow versions to order. Suited to neutral and corrosive gases according to the hose type.
Specification
| In/Out Connections | Tube fitting, pipe adapter, butt weld, tube adapter, face seal or cylinder connection; NPT, BSPP, BSPT, 16 x 1.336 or G 3/8 female with rotating nut |
|---|---|
| Material | PTFE inner tube, stainless steel 304L double braid |
| Cylinder Connection | AFNOR, DIN, BS, CGA, UNI or FTSC 300 bar, to order |
| Maximum Inlet Pressure | 300 bar at DN6, 200 at DN10, 125 at DN16, 100 at DN20, 80 at DN25 |
Gases
