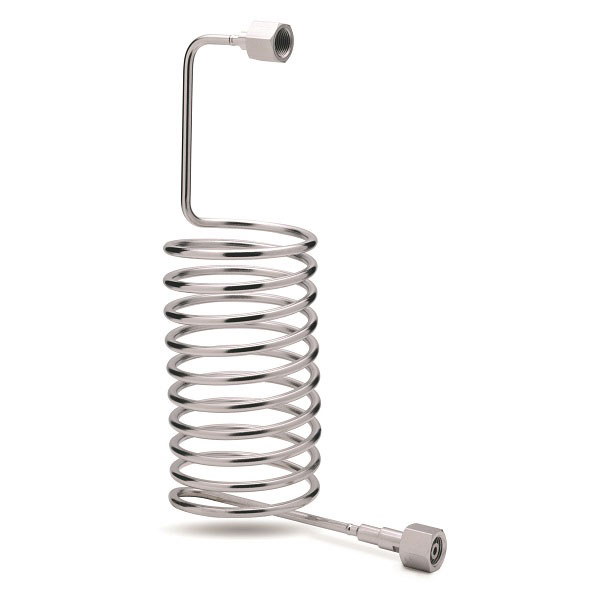

Straight or Elbow Pigtails
Stainless steel pigtails with standardized cylinder connectors, G 3/8F or NPT outlet, electro‑polished for purity, with optional custom outlets and shut‑off valve.
Key features
- Straight or elbow, electropolished stainless steel
- Cylinder end to AFNOR, DIN, BS, CGA, UNI or NEN by gas
- G 3/8 female outlet, other outlets and a shut off valve to order
- Nominal pressure 300 bar on the straight stainless version
- Connects CM supply boards and TD switchover boards
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteHigh pressure pigtails in electropolished stainless steel, straight or elbow, for connecting supply boards and switchover boards to gas cylinders. The cylinder end is made to the AFNOR, DIN, BS, CGA, UNI or NEN standard and to the gas you specify, the outlet is G 3/8 female, and the catalogue lists the straight stainless version at a nominal pressure of 300 bar. A different outlet connection and a shut off valve are available as options, and other connections are made on demand. Straight and elbow versions are listed for every standard, and the gas type is stated on the order.
Specification
| Standard | AFNOR, DIN, BS, CGA, UNI or NEN cylinder end |
|---|---|
| In/Out Connections | G 3/8 female outlet, other outlets to order |
| Material | Stainless steel, electropolished |
| Cylinder Connection | Straight or elbow, to the standard and gas specified |
| Maximum Inlet Pressure | 300 bar nominal (straight stainless version) |
Gases
Downloads
No documents on file for this product yet.
