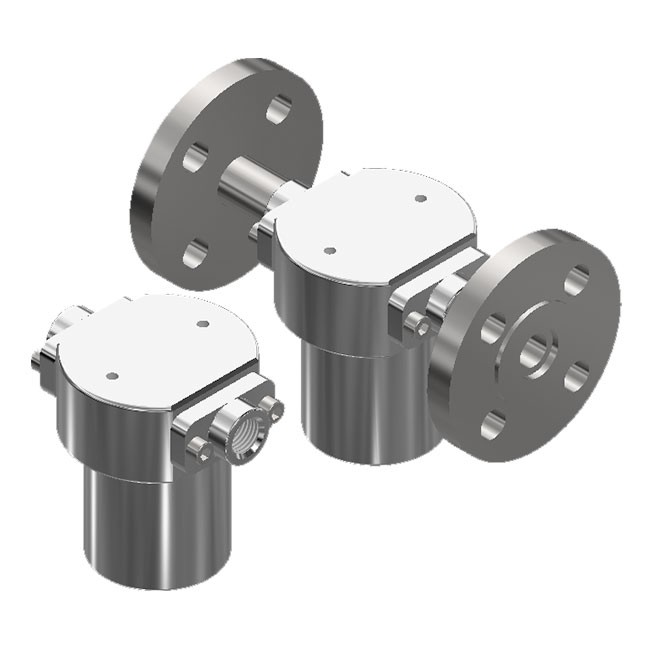

PHF CS2 FN12 Filter for NH3
Maximum inlet pressure 15 bar threaded version. In/out connections 1/4 and 3/8 and 1/2 inch.
Key features
- Built for ammonia service
- 5 or 50 micron elements in AISI 316L stainless steel
- 15 bar maximum inlet pressure on the threaded version
- 1/4, 3/8 and 1/2 inch connections, G female or NPT female; flanged versions available
- PED 2014/68/EU and ATEX 2014/34/EU
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe PHF CS2 FN12 is an AISI 316L stainless steel in-line filter built for ammonia service, with 5 or 50 micron elements and connections at 1/4, 3/8 and 1/2 inch. The threaded version in G female or NPT female is rated to 15 bar maximum inlet pressure, which is lower than the rest of the range and specific to this unit; flanged versions to UNI EN 1092-1 or ASME B16.5 take the rating of the flange standard. Body and inner parts are 316L, the working temperature is minus 20 to plus 80 degrees C, and the unit carries PED 2014/68/EU and ATEX 2014/34/EU conformity. The threaded version weighs 2.7 kg and takes a panel mounting bracket. Where a line carries ammonia this is the filter to specify; the standard stainless units are not a substitute for it.
Conformity
PED 2014/68/EU; ATEX 2014/34/EU
Specification
| Filtration Degree | 5 or 50 micron |
|---|---|
| Maximum Inlet Pressure | 15 bar, threaded version; flanged version to the flange standard |
| In/Out Connections | 1/4 in, 3/8 in and 1/2 in, G female or NPT female; flanged to UNI EN 1092-1 or ASME B16.5 |
| Body Material | AISI 316L stainless steel |
| Temperature | -20 to +80 C, other ranges on request |
| Weight | 2.7 kg, threaded version |
| Inner Parts | AISI 316L stainless steel |
| Accessories | Panel mounting bracket; wear parts kit |
