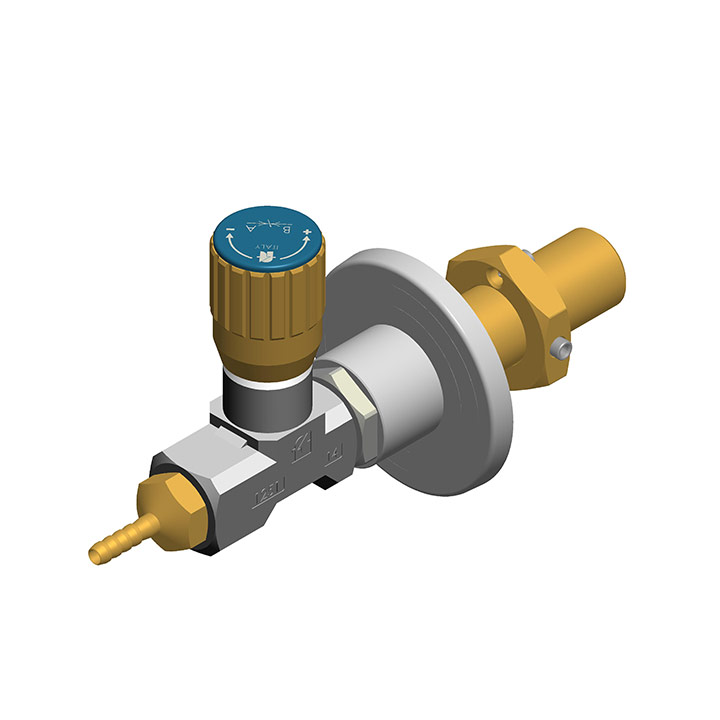

Fine Adjustment Wall Mounted Valve
Request a quote
Fine Adjustment Wall Mounted Valve
Wall-Mounted Gas Taps & User Points
Precision micrometric wall-mounted valve providing ultra-fine pressure control with anti-rotation fixing.
In/Out ConnectionsG1/2 or G3/8 parallel thread to ISO 228-1
MountingWall, with anti rotation fixing
Key features
- Micrometric adjustment for precise, repeatable setting
- Fine thread gives control without overshooting
- Anti rotation fixing keeps the body square to the wall
- For applications set once and left in position
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A wall mounted valve with micrometric adjustment, for applications where the delivery has to be set precisely and then left alone. The fine thread gives more turns across the working range than a standard tap, so small changes can be made without overshooting. An anti rotation fixing holds the body square to the wall as the valve is operated.
Specification
| In/Out Connections | G1/2 or G3/8 parallel thread to ISO 228-1 |
|---|---|
| Mounting | Wall, with anti rotation fixing |
| Technology | Micro-metric outlet valve |
| Body Material | Chrome plated brass or AISI 316L stainless steel |
| Temperature | -20 to +60 C |
| Gas Compatibility | Technical gases and compressed air, to a maximum purity of 6.0 |
| Standard | Colour coding to DIN EN 13792 |
Gases
Hydrogen
Downloads
No documents on file for this product yet.
