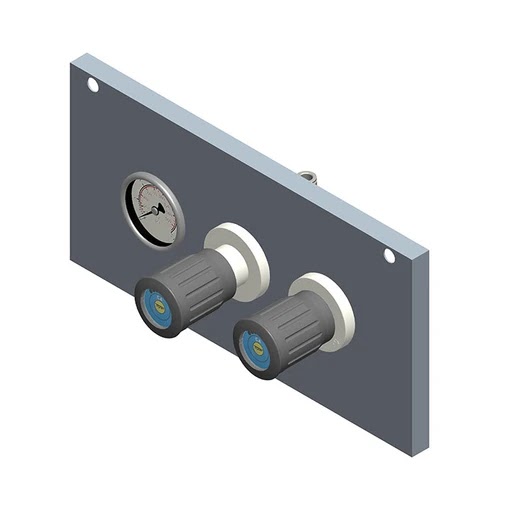

Pressure Reducing Plate with Control Valve
Wall-Mounted Gas Taps & User Points
Wall-mounted assembly combining pressure reduction with integrated control valve.
In/Out ConnectionsG1/2 or G3/8 parallel thread to ISO 228-1
MountingPlate assembly, wall fixed
Key features
- Pressure reduction and control valve on one plate
- Single fixing and one set of connections
- Repeatable across identical outlet positions
- Suits service walls and laboratory gas spines
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A wall mounted plate assembly that combines pressure reduction with a control valve on one backplate. Bringing both onto a single plate means one fixing, one set of connections and one item to specify, rather than assembling a reducer and a valve on site. Suited to service walls and gas spines where the installation needs to be repeatable across many identical positions.
Specification
| In/Out Connections | G1/2 or G3/8 parallel thread to ISO 228-1 |
|---|---|
| Mounting | Plate assembly, wall fixed |
| Technology | Pressure reduction and control valve on one backplate |
| Body Material | Chrome plated brass or AISI 316L stainless steel |
| Diaphragm | Stainless steel |
| Temperature | -20 to +60 C |
| Gas Compatibility | Technical gases and compressed air, to a maximum purity of 6.0 |
| Standard | Colour coding to DIN EN 13792 |
Gases
Hydrogen
