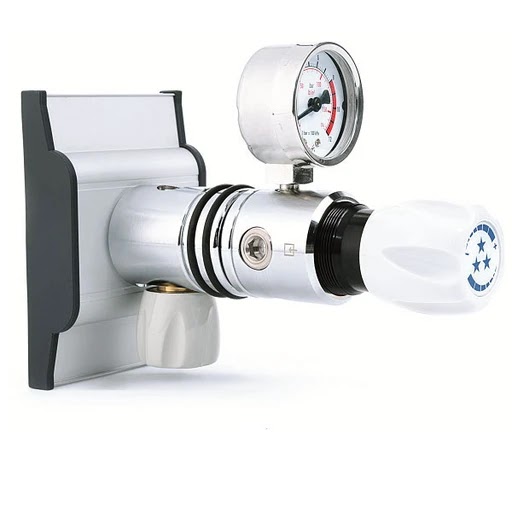

Labline S22 Regulator - 3 Mounting Versions
Wall-Mounted Gas Taps & User Points
Laboratory point-of-use outlet regulator modular design for easy installation. Utilising bellow technology for safe and accurate gas control.
Setting Range1 / 3 / 10 bar versions (1.5 bar acetylene version)
Maximum Inlet Pressure50 bar (20 bar acetylene version)
In/Out ConnectionsG 3/8 or 1/4 in NPT inlet and outlet, G 1/4 inlet on the COL version
Mountingthree versions, EMB and COL with MV valve, M with 1/4 turn valve; inlet rear (COL) or top (EMB), outlet left (COL) or right (EMB)
Key features
- Three mounting versions from one modular unit
- Bellow technology for safe, accurate control
- Point of use regulation at the outlet
- Fits existing laboratory layouts without rework
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A modular laboratory point of use outlet regulator, available in three mounting versions from the same core unit, which is what makes it straightforward to install into an existing laboratory layout rather than working the layout around the fitting. It uses bellow technology for the sensing element, for safe and accurate gas control.
Specification
| Setting Range | 1 / 3 / 10 bar versions (1.5 bar acetylene version) |
|---|---|
| Maximum Inlet Pressure | 50 bar (20 bar acetylene version) |
| In/Out Connections | G 3/8 or 1/4 in NPT inlet and outlet, G 1/4 inlet on the COL version |
| Mounting | three versions, EMB and COL with MV valve, M with 1/4 turn valve; inlet rear (COL) or top (EMB), outlet left (COL) or right (EMB) |
| Temperature | -20 to +60 C |
| Body Material | chrome plated brass or stainless steel |
| Weight | about 1.5 kg |
| Seat Material | EPDM (seat gasket) |
| Technology | bellows, modular point of use |
| Gauge | low pressure, M10 x 1 or 1/4 in NPT |
| Gas Compatibility | Oxygen service on the brass and stainless versions at inlet pressures up to 30 bar |
| Flow Rate | 2 / 2.5 / 3.5 Nm3/h nitrogen by version (1 Nm3/h acetylene version) |
Gases
Hydrogen
