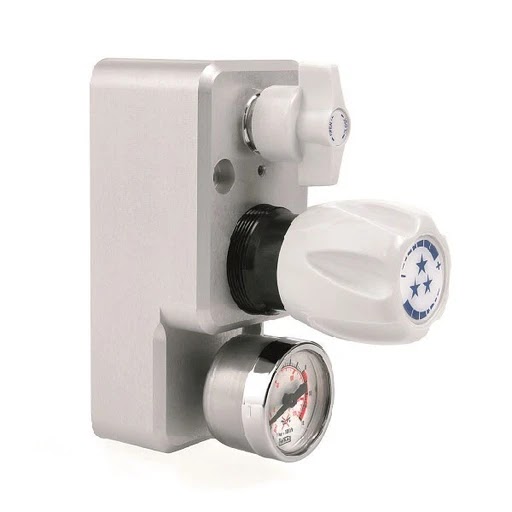

Mono Series S20 Point of Use
Wall-Mounted Gas Taps & User Points
Point-of-use regulator with integrated bellow technology for stable pressure control.
Setting Range1 / 3 / 10 bar versions (1.5 bar acetylene version)
Maximum Inlet Pressure50 bar (20 bar acetylene version)
In/Out ConnectionsG 3/8 or 1/4 in NPT inlet and outlet
Mountingwall or panel; inlet rear, outlet bottom
Key features
- Integrated bellow technology for stable pressure
- Specified where delivery must stay steady
- Point of use regulation at the wall
- The stability option within the same series
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A point of use regulator using integrated bellow technology, specified where the delivery pressure needs to stay steady in use. Bellow and diaphragm units sit alongside each other in the same series, so the choice between them comes down to whether steady pressure or a compact body matters more in the position.
Specification
| Setting Range | 1 / 3 / 10 bar versions (1.5 bar acetylene version) |
|---|---|
| Maximum Inlet Pressure | 50 bar (20 bar acetylene version) |
| In/Out Connections | G 3/8 or 1/4 in NPT inlet and outlet |
| Mounting | wall or panel; inlet rear, outlet bottom |
| Temperature | -20 to +60 C |
| Body Material | aluminium or stainless steel |
| Weight | about 1.25 kg aluminium, 2.75 kg stainless steel |
| Seat Material | EPDM (seat gasket) |
| Technology | bellows, compact point of use |
| Gauge | low pressure, M10 x 1 |
| Gas Compatibility | Oxygen service on the aluminium and stainless versions at inlet pressures up to 30 bar |
| Flow Rate | 2 / 2.5 / 3.5 Nm3/h nitrogen by version (1 Nm3/h acetylene version) |
Gases
Hydrogen
