Tap – Inclined Handle Nozzle 45deg
Wall-Mounted Gas Taps & User Points

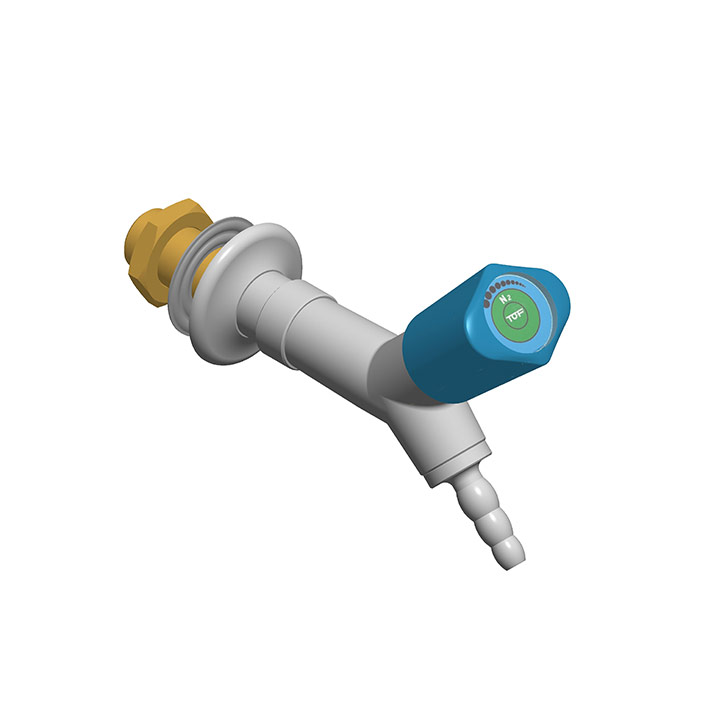

Wall-mounted gas tap with inclined handle design and 45-degree nozzle orientation.
Outlets1
Gas CompatibilityBurning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version
In/Out ConnectionsG3/8 or G1/2 parallel thread to ISO 228-1
MountingWall
Key features
- Inclined handle for easier reach behind benching
- 45 degree nozzle on the outlet
- Wall mounted position
- Suits taps sitting above a working surface
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A wall mounted gas tap with an inclined handle and a 45 degree nozzle. The inclined handle angles the operating position away from the wall, which makes it easier to reach and turn where the tap sits behind benching or above a working surface. The angled nozzle takes the hose away from the wall without the full right angle turn.
Specification
| Outlets | 1 |
|---|---|
| Gas Compatibility | Burning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version |
| In/Out Connections | G3/8 or G1/2 parallel thread to ISO 228-1 |
| Mounting | Wall |
| Technology | Inclined handle, angled clear of the wall |
| Outlet Nozzle | Fixed olive form to DIN 12898, set at 45 degrees |
| Maximum Inlet Pressure | Burning gas 0.2 bar, liquid gas 2 bar, steam 4 bar, compressed air 10 bar, industrial gas 10 bar, depending on the version supplied |
| Body Material | Brass, CuZn40Pb2, epoxy coated |
| Temperature | -30 to +150 C (steam versions to 125 C) |
| Standard | Handle colour coding to DIN EN 13792; burning gas versions to DIN-DVGW |
