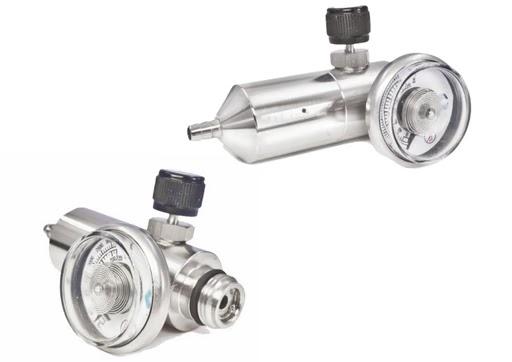

CR-96 Fixed-Flow Calibration Regulator
Features a robust single-stage design that delivers a preset constant flow rate for calibration applications.
Key features
- One fixed flow rate, set to order from 0.1 to 8 litres per minute
- 120 bar maximum inlet pressure, the high pressure fixed flow unit
- 5/8 in x 18 UN C10 cylinder inlet, 3/16 in barb outlet
- Stainless steel inlet gauge reading to 220 bar
- Nickel plated brass cap with a brass piston, for non-reactive gases
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe CR-96 is a single stage fixed flow regulator for calibration gas, rated to 120 bar inlet, which is the high pressure member of the fixed flow range. It delivers one preset flow rate, set at the factory to the figure your detector procedure specifies, from 0.1 to 8 litres per minute, at an outlet pressure of 4.1 bar, so every calibration uses the same rate without adjustment. The inlet is the 5/8 inch by 18 UN C10 cylinder thread and the outlet a 3/16 inch barb. The inlet gauge is stainless steel and reads to 220 bar. The cap is nickel plated brass with a brass piston and PTFE and Viton seals, and this brass version is for non-reactive gases. It weighs 0.30 kg.
Specification
| Maximum Inlet Pressure | 120 bar |
|---|---|
| Setting Range | 4.1 bar outlet, fixed |
| In/Out Connections | 5/8 in x 18 UN (C10) inlet; 3/16 in barb outlet |
| Gas Compatibility | Non-reactive gases, brass version |
| Stages | single stage |
| Weight | 0.30 kg |
| Gauge | Inlet gauge, stainless steel, 0 to 220 bar |
| Material | Nickel plated brass cap; brass piston; PTFE and Viton seals |
| Flow Rate | 0.1 to 8 L/min, fixed to order |
| Technology | Piston, fixed flow |
