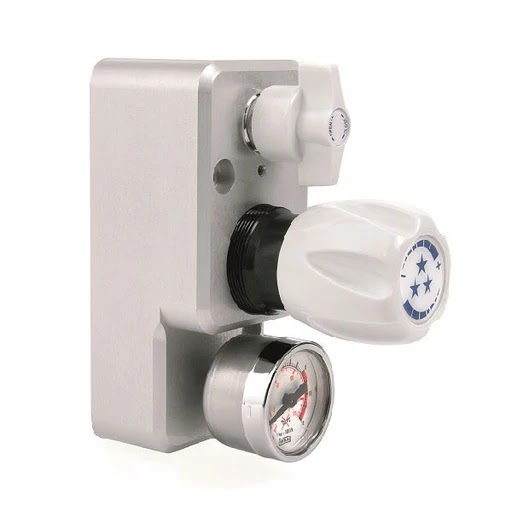

Mono Series S 20 In-Line
Point of use integrated bellow technology. Available in both aluminium and stainless steel for corrosive gases.
Key features
- Bellows control in a compact point of use body
- Outlet 1, 3 or 10 bar by version
- Aluminium 1.25 kg or stainless 2.75 kg
- Oxygen service to 30 bar inlet
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteA compact point of use regulator with bellows control for specialty gas in the laboratory or workshop, available in aluminium or stainless steel for corrosive gases. Outlet versions are 1, 3 and 10 bar from a 50 bar inlet, nominal flows 2 to 3.5 Nm3/h of nitrogen, with a Hastelloy diaphragm and bronze or AISI 316L bellows. Aluminium versions weigh about 1.25 kg and stainless about 2.75 kg, ports are G 3/8 or 1/4 inch NPT, it wall or panel mounts, and the acetylene version is rated 20 bar inlet. Oxygen service at inlet pressures up to 30 bar.
Specification
| Maximum Inlet Pressure | 50 bar (20 bar acetylene version) |
|---|---|
| Setting Range | 1 / 3 / 10 bar versions (1.5 bar acetylene version) |
| In/Out Connections | G 3/8 or 1/4 in NPT inlet and outlet |
| Gas Compatibility | Oxygen service on the aluminium and stainless versions at inlet pressures up to 30 bar |
| Temperature | -20 to +60 C |
| Weight | about 1.25 kg aluminium, 2.75 kg stainless steel |
| Gauge | low pressure, M10 x 1 |
| Body Material | aluminium or stainless steel |
| Technology | bellows, compact point of use |
| Seat Material | EPDM (seat gasket) |
