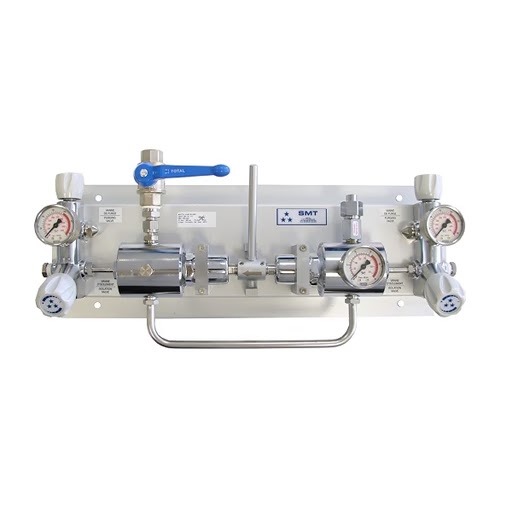

Series CEN Autochange Manifold
Auto-change manifold offering high flow supply of non-corrosive industrial gases. Balanced valve technology removes the requirement for secondary regulation downstream.
Key features
- Automatic switchover with manual reset
- Flows to 180 Nm3/h nitrogen on the 200 bar version
- Outlet versions 10, 16, 30 and 50 bar
- Balanced valve, no downstream regulator needed
- Up to six cylinders without extensions
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteAn automatic changeover manifold with manual reset, the Rotarex CEN switchover board, for the high flow supply of non-corrosive industrial gases, sized for plasma, TIG and MIG cutting and welding: 70 to 180 Nm3/h of nitrogen on the 200 bar version and 50 to 130 on the 300 bar version, with outlet versions of 10, 16, 30 and 50 bar. Balanced valve regulation holds the outlet steady as inlet pressure changes, so no second regulator is needed downstream, and up to six cylinders connect without extensions when the purge line is not used. Chrome plated or raw brass, about 13.8 kg, with a non-whipping inlet filter, an optional quarter turn outlet valve and alarm box connection through contact gauges. Carbon dioxide, acetylene and propane versions exist.
Specification
| Maximum Inlet Pressure | 200 / 300 bar versions (25 bar acetylene and propane versions) |
|---|---|
| Setting Range | 10 / 16 / 30 / 50 bar versions (1 bar acetylene, 4 bar propane) |
| In/Out Connections | G 3/8 inlet and G 1/2 outlet, or 3/8 in NPT inlet and G 1/2 outlet |
| Gas Compatibility | Oxygen service on the 200 and 300 bar inlet versions |
| Stages | single stage |
| Temperature | -20 to +60 C |
| Weight | about 13.8 kg |
| Gauge | high and low pressure, M10 x 1 or G 1/4 |
| Body Material | chrome plated or raw brass |
| Technology | automatic switchover with manual reset, balanced valve regulation |
| Seat Material | PCTFE |
