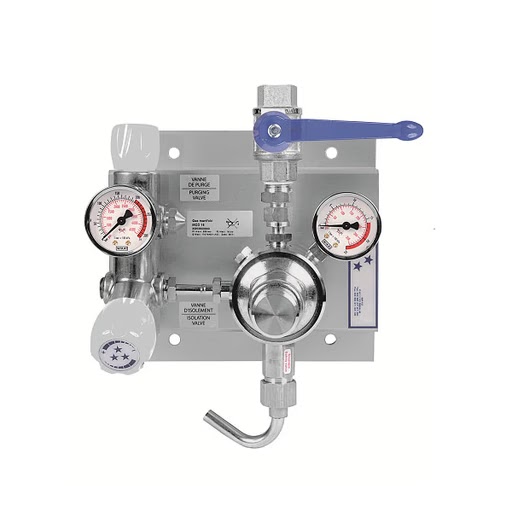

Series MOD High Flow Manual Manifold

A cylinder manifold with balanced valve regulation, the Rotarex MOD supply board, for the high flow supply of industrial gases other than toxic or corrosive ones, normally paired with a switchover board to regulate the emergency source while the main source is under maintenance, which avoids adding extensions and their leak points. Two cylinders plus a purge gas connect without extensions, up to three when the purge line is not used. Inlet versions of 200 and 300 bar, outlet 10, 16, 30 and 50 bar, nominal flows of 70 to 180 Nm3/h of nitrogen on the 200 bar version and 50 to 130 on the 300 bar version, about 6 kg, with a non-whipping inlet filter, an optional quarter turn outlet valve, alarm box connection and an acetylene version.
