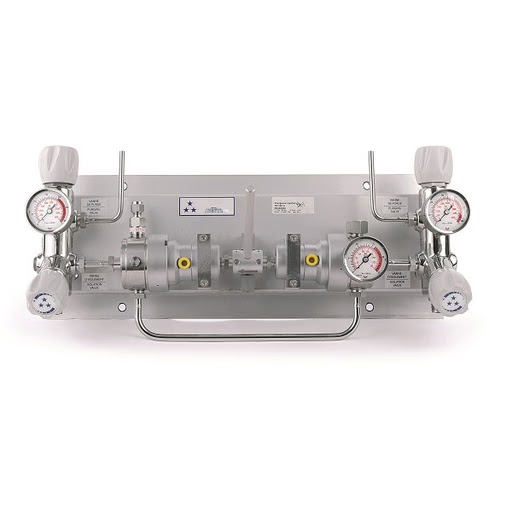

Series TDI Autochange Manifold
Automatic switchover board with manual reset single stage diaphragm technology. Stainless steel designed for corrosive gases.
Key features
- Stainless steel switchover for corrosive gases
- Hastelloy diaphragms, PCTFE seats
- 10, 25 or 50 bar outlet versions
- Ammonia version, 8 bar inlet
- No oxygen service on this board
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe Rotarex TDI 102, the stainless steel switchover board for high purity corrosive gases at low flow, an automatic changeover with manual reset regulated by two S 220 regulators, supplying analysers and controlled atmosphere systems in laboratories and control units. The regulators carry Hastelloy diaphragms and PCTFE seats, outlet versions are 10, 25 and 50 bar from a 200 bar inlet with nominal flows of 10 to 50 Nm3/h of nitrogen, and up to six cylinders connect without the purge line. About 15 kg, with collection tube, outlet shut off valve and alarm box options. An ammonia version is rated 8 bar inlet, 3 bar outlet and 5 Nm3/h. Not for oxygen service.
Specification
| Maximum Inlet Pressure | 200 bar (8 bar ammonia version) |
|---|---|
| Setting Range | 10 / 25 / 50 bar versions (3 bar ammonia version) |
| In/Out Connections | G 3/8 or 1/4 in NPT inlet and outlet |
| Gas Compatibility | Not suitable for oxygen service |
| Stages | single stage |
| Temperature | -20 to +60 C |
| Weight | about 15 kg |
| Gauge | high and low pressure, M10 x 1 or 1/8 in NPT |
| Body Material | stainless steel |
| Technology | automatic switchover with manual reset, diaphragm regulators |
| Seat Material | PCTFE |
