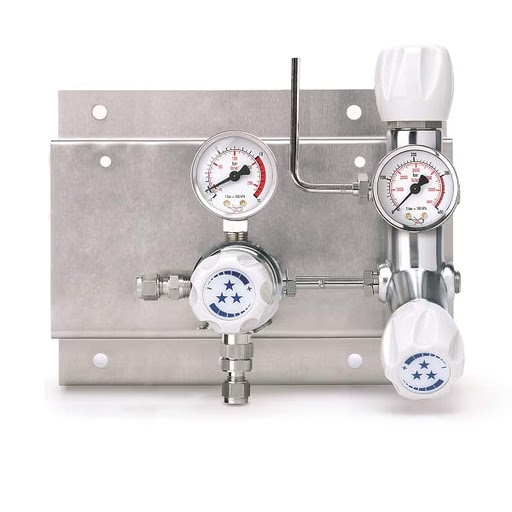

Series CM280-380 Manual Manifold

A cylinder manifold built on cartridge regulators, the Rotarex CM 280/380 supply board, for pure and corrosive gases in high purity work, supplying analysers and controlled atmosphere systems in laboratories, control units and petrochemical plants where high flows are required. Cartridge technology keeps the outlet stable as inlet pressure changes and extends regulator life. Inlet versions of 230 and 300 bar, outlet 10, 16, 35 and 50 bar, nominal flow up to 30 Nm3/h of nitrogen depending on outlet pressure, Hastelloy diaphragm, 1/4 inch NPT ports, one relief valve and one purge outlet. Rotarex configures it for nitrogen, carbon dioxide, nitrous oxide, helium and hydrogen with other gases on request, and oxygen service is on the brass 230 bar version.
