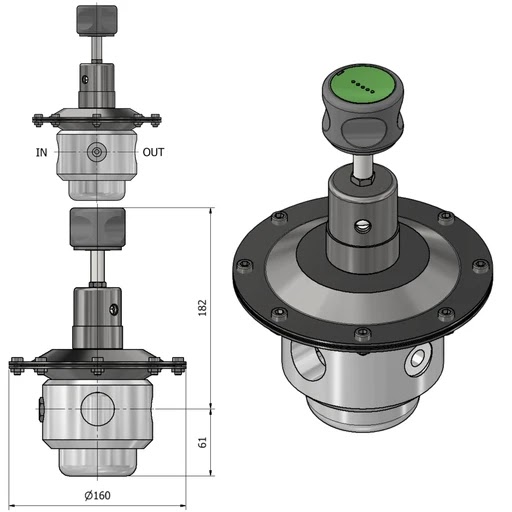

Series PHF AS3 R10 High Flow
Model PHF AS3 R10 · Pipeline Regulators
Pipeline regulator offering balanced-valve stability with low controllable outlet pressure range from 5-1000 mbar.
Maximum Inlet Pressure10 bar
Setting Range5 to 50 mbar / 20 to 1000 mbar
In/Out Connections3/4 and 1 in (G-F / NPT-F)
Key features
- Millibar outlet control, 5 to 50 and 20 to 1000 mbar ranges
- Balanced valve holds the setting as demand changes
- 3/4 and 1 inch G or NPT female connections
- Aluminium body with stainless steel internals
- PED 2014/68/EU certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A third stage pipeline regulator for stepping an already reduced supply down to millibar working pressures, with two setting ranges covering 5 to 50 mbar and 20 to 1000 mbar. The balanced valve holds the outlet steady as upstream pressure and demand move, which is what makes low millibar control usable in practice. Aluminium body with stainless steel internals, 3/4 and 1 inch connections in G or NPT female thread, and flow capacity to match main pipeline runs.
Conformity
PED 2014/68/EU
Specification
| Maximum Inlet Pressure | 10 bar |
|---|---|
| Setting Range | 5 to 50 mbar / 20 to 1000 mbar |
| In/Out Connections | 3/4 and 1 in (G-F / NPT-F) |
| Temperature | -25 to +130 C |
| Weight | 6.5 kg |
| Inner Parts | AISI 316L stainless steel |
| Body Material | aluminium |
| Kv (EN 60534) | 1.5 / 8.5 m3/h by range |
Gases
Hydrogen
