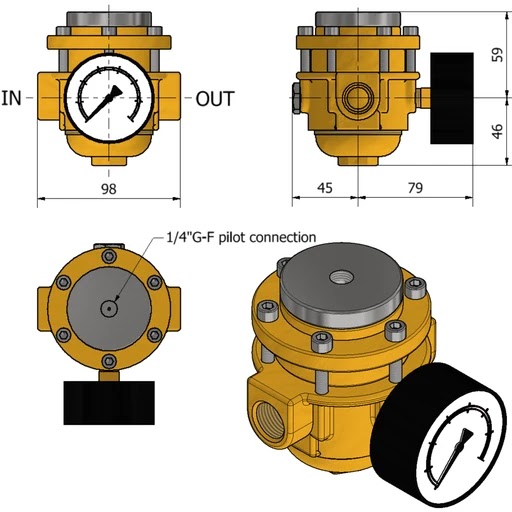

Series PHF BP2 R12 High Flow
Request a quote
Series PHF BP2 R12 High Flow
Model PHF BP2 R12 · Pipeline Regulators
Remote-controlled pipeline regulator controllable via pneumatic signal offering balanced-valve stability and high flow performance.
Maximum Inlet Pressure60 bar
Setting Range0 to 15 bar / 0 to 50 bar (remote set)
In/Out Connections1/4 and 1/2 in (G-F / NPT-F)
Key features
- Outlet pressure set remotely by pneumatic signal
- 0 to 15 or 0 to 50 bar set ranges from a 60 bar inlet
- Brass construction in 1/4 and 1/2 inch sizes
- Oxygen-degreased version available
- PED 2014/68/EU certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A remote controlled pipeline regulator whose outlet pressure is set by a pneumatic signal rather than a handwheel, so the setting can be driven from a control panel or automated from elsewhere in the plant. Two set ranges, 0 to 15 and 0 to 50 bar, from a 60 bar inlet. Brass construction, 1/4 and 1/2 inch connections, and a version degreased for oxygen service is available.
Conformity
PED 2014/68/EU
Specification
| Maximum Inlet Pressure | 60 bar |
|---|---|
| Setting Range | 0 to 15 bar / 0 to 50 bar (remote set) |
| In/Out Connections | 1/4 and 1/2 in (G-F / NPT-F) |
| Temperature | -20 to +80 C |
| Weight | 3 kg |
| Inner Parts | brass |
| Body Material | brass |
| Kv (EN 60534) | 3.2 m3/h |
Gases
Hydrogen
