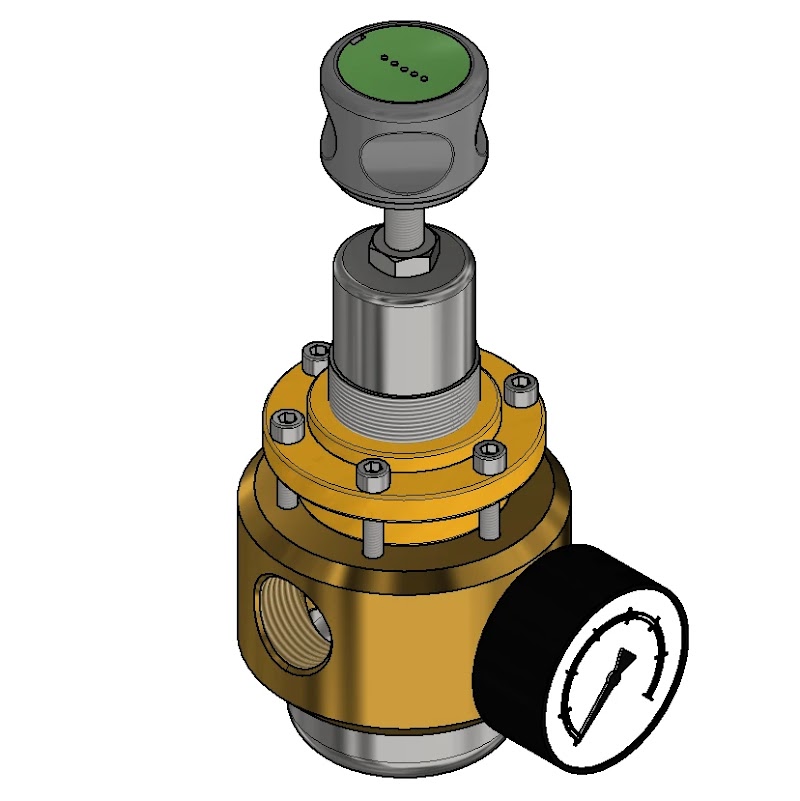

Series PHF BS2 R10 High Flow
Model PHF BS2 R10 · Pipeline Regulators
Pipeline regulator offering balanced-valve stability and high flow performance with 3/4-1 inch NPT ports.
Maximum Inlet Pressure60 bar
Setting Range0.2 to 3 / 0.5 to 8 / 1.5 to 15 / 2 to 30 / 3 to 50 bar
In/Out Connections3/4 and 1 in (G-F / NPT-F)
Key features
- Five setting ranges spanning 0.2 to 50 bar
- 3/4 and 1 inch line sizes in G or NPT female
- Flow capacity for distribution mains, Kv 8.5 m3/h
- Brass body rated for gases and liquids
- PED 2014/68/EU certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A brass pipeline regulator in 3/4 and 1 inch line sizes, with five selectable setting ranges spanning 0.2 to 50 bar from a 60 bar inlet. The balanced valve keeps the outlet steady under changing flow, and the 8.5 m3/h flow capacity suits distribution mains rather than single point of use lines. Rated for gases and liquids across -20 to +80 C.
Conformity
PED 2014/68/EU
Specification
| Maximum Inlet Pressure | 60 bar |
|---|---|
| Setting Range | 0.2 to 3 / 0.5 to 8 / 1.5 to 15 / 2 to 30 / 3 to 50 bar |
| In/Out Connections | 3/4 and 1 in (G-F / NPT-F) |
| Temperature | -20 to +80 C |
| Weight | 4.3 kg |
| Inner Parts | brass |
| Body Material | brass |
| Kv (EN 60534) | 8.5 m3/h |
Gases
Hydrogen
