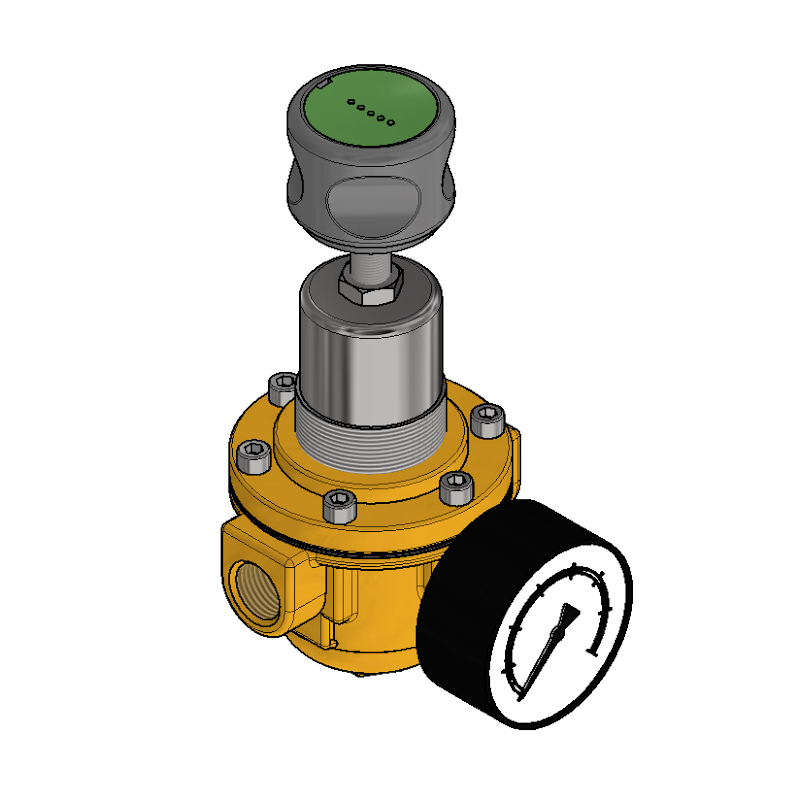

Series PHF BS2 R12 High Flow
Model PHF BS2 R12 · Pipeline Regulators
Pipeline regulator offering balanced-valve stability and high flow performance with 1/4-1/2 inch NPT ports. Available in Brass and 316SS or Aluminium.
Maximum Inlet Pressure60 bar
Setting Range0.2 to 3 / 0.5 to 8 / 1.5 to 15 / 2 to 30 / 3 to 50 bar
In/Out Connections1/4 and 1/2 in (G-F / NPT-F)
Key features
- 1/4 and 1/2 inch line sizes for branch pipework
- Five setting ranges, 0.2 up to 50 bar
- 60 bar inlet rating in brass
- Balanced valve stability under changing draw
- PED 2014/68/EU certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
The 1/4 and 1/2 inch brass unit in the pipeline regulator family, carrying the same five setting ranges from 0.2 up to 50 bar and the same 60 bar inlet rating as the larger sizes. Balanced valve control keeps the outlet stable as draw varies. Sized for branch and instrument lines rather than mains, at 3 kg with a 3.2 m3/h flow capacity.
Conformity
PED 2014/68/EU
Specification
| Maximum Inlet Pressure | 60 bar |
|---|---|
| Setting Range | 0.2 to 3 / 0.5 to 8 / 1.5 to 15 / 2 to 30 / 3 to 50 bar |
| In/Out Connections | 1/4 and 1/2 in (G-F / NPT-F) |
| Temperature | -20 to +80 C |
| Weight | 3 kg |
| Inner Parts | brass |
| Body Material | brass |
| Kv (EN 60534) | 3.2 m3/h |
Gases
Hydrogen
