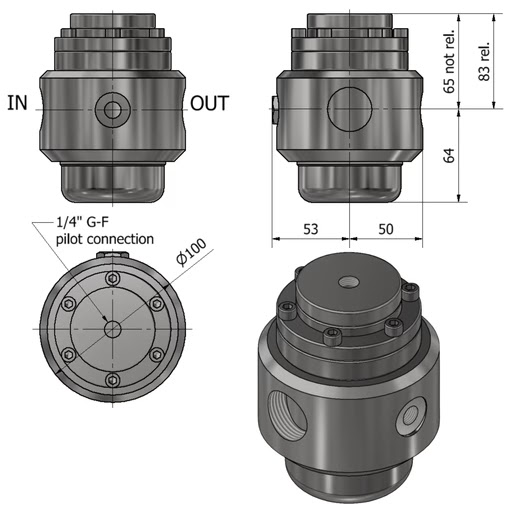

Series PHF CP2 R10 High Flow
Model PHF CP2 R10 · Pipeline Regulators
Remote-controlled pipeline regulator controllable via pneumatic signal with 3/4-1 inch NPT ports.
Maximum Inlet Pressure60 bar
Setting Range0 to 15 bar / 0 to 50 bar (remote set)
In/Out Connections3/4 and 1 in (G-F / NPT-F); flanged available
Key features
- Remote pneumatic setting, 0 to 15 or 0 to 50 bar
- Full AISI 316L construction for corrosive duty
- Rated to +200 C with FPM seals
- ATEX certified alongside PED
- 3/4 and 1 inch sizes, flanged option available
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A remote controlled stainless steel pipeline regulator, set by pneumatic signal across 0 to 15 or 0 to 50 bar ranges, in 3/4 and 1 inch line sizes with flanged connections available. Full AISI 316L construction carries corrosive duty and temperatures to +200 C with FPM seals, and the unit is certified for ATEX environments as well as PED. The choice where remote setting has to live in a process area.
Conformity
PED 2014/68/EU; ATEX 2014/34/EU
Specification
| Maximum Inlet Pressure | 60 bar |
|---|---|
| Setting Range | 0 to 15 bar / 0 to 50 bar (remote set) |
| In/Out Connections | 3/4 and 1 in (G-F / NPT-F); flanged available |
| Temperature | -25 to +200 C (FPM seals) / -40 to +175 C (EPDM) |
| Weight | 4.5 kg |
| Inner Parts | AISI 316L stainless steel |
| Body Material | AISI 316L stainless steel |
| Kv (EN 60534) | 8.5 m3/h |
Gases
Hydrogen
