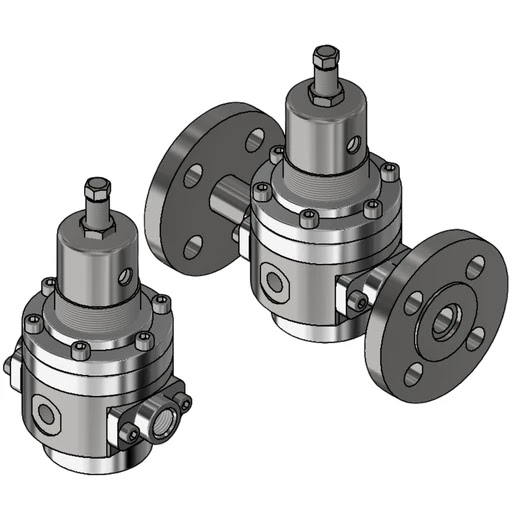

Series PHF CS2 R12 High Flow
Model PHF CS2 R12 · Pipeline Regulators
Pipeline regulator offering balanced-valve stability and high flow performance with piston control. Available in Brass and 316SS or Aluminium.
Maximum Inlet Pressure60 bar
Setting Range0.3 to 3 / 0.8 to 8 / 1.5 to 15 / 3 to 30 / 5 to 50 bar
In/Out Connections1/4, 3/8 and 1/2 in (G-F / NPT-F); flanged available
Key features
- Piston control with a balanced shutter
- Setting ranges 0.3 up to 50 bar in five steps
- AISI 316L body and internals for corrosive duty
- 1/4 to 1/2 inch sizes, flanged option available
- FPM seals carry service to +200 C
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
The stainless steel pipeline regulator in 1/4 to 1/2 inch line sizes, with piston control and a balanced shutter holding the outlet steady as flow changes, self actuated with no external air or power. Five setting ranges span 0.3 to 50 bar from a 60 bar inlet, with AISI 316L throughout for the corrosive and process duties the brass version is not suited to, and service to +200 C on FPM seals.
Conformity
PED 2014/68/EU; ATEX 2014/34/EU
Specification
| Maximum Inlet Pressure | 60 bar |
|---|---|
| Setting Range | 0.3 to 3 / 0.8 to 8 / 1.5 to 15 / 3 to 30 / 5 to 50 bar |
| In/Out Connections | 1/4, 3/8 and 1/2 in (G-F / NPT-F); flanged available |
| Temperature | -25 to +200 C (FPM seals) / -40 to +175 C (EPDM) |
| Weight | 3.7 kg |
| Inner Parts | AISI 316L stainless steel |
| Body Material | AISI 316L stainless steel |
| Kv (EN 60534) | 3.2 m3/h |
Gases
Hydrogen
