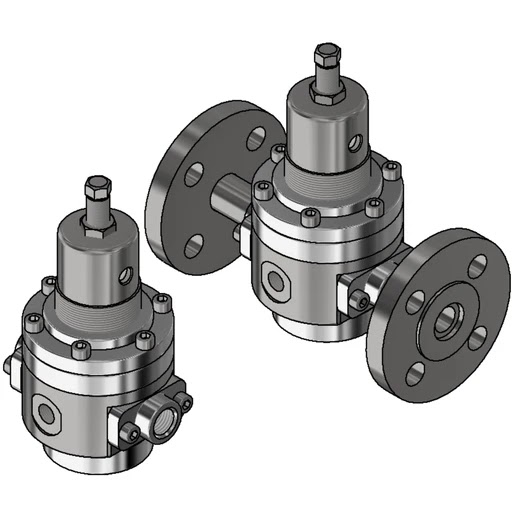

Series PHF CS2 RN12 High Flow
Model PHF CS2 RN12 · Pipeline Regulators
Pipeline regulator built for regulation of NH3 offering balanced-valve stability and high flow performance.
Maximum Inlet Pressure15 bar
Setting Range0.1 to 1.5 bar / 0.2 to 3 bar
In/Out Connections1/4, 3/8 and 1/2 in (G-F / NPT-F)
Key features
- Built for ammonia, which attacks brass alloys
- AISI 316L body and internals throughout
- Low set ranges, 0.1 to 1.5 and 0.2 to 3 bar
- Self actuated, no external air or power
- ATEX and PED certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A pipeline regulator built specifically for ammonia service, in AISI 316L throughout because NH3 attacks brass and copper alloys. Two low setting ranges, 0.1 to 1.5 and 0.2 to 3 bar, from a 15 bar inlet, self actuated with no external air or power. Line sizes 1/4 to 1/2 inch in G or NPT female thread, certified for ATEX environments as well as PED.
Conformity
PED 2014/68/EU; ATEX 2014/34/EU
Specification
| Maximum Inlet Pressure | 15 bar |
|---|---|
| Setting Range | 0.1 to 1.5 bar / 0.2 to 3 bar |
| In/Out Connections | 1/4, 3/8 and 1/2 in (G-F / NPT-F) |
| Temperature | -20 to +80 C |
| Weight | 3.7 kg |
| Inner Parts | AISI 316L stainless steel |
| Body Material | AISI 316L stainless steel |
| Kv (EN 60534) | 3.2 m3/h |
Gases
Hydrogen
