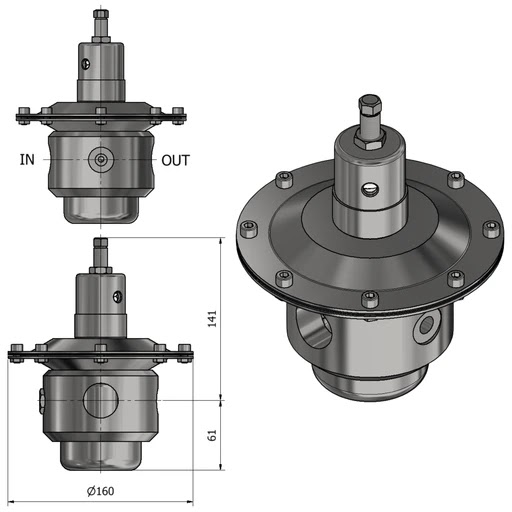

Series PHF CS3 R10 High Flow
Model PHF CS3 R10 · Pipeline Regulators
Pipeline regulator offering balanced-valve stability with low controllable outlet pressure range from 5-1000 mbar.
Maximum Inlet Pressure10 bar
Setting Range5 to 50 mbar / 20 to 1000 mbar
In/Out Connections3/4 and 1 in (G-F / NPT-F); flanged available
Key features
- Millibar control in full AISI 316L construction
- Two ranges, 5 to 50 and 20 to 1000 mbar
- 3/4 and 1 inch sizes, flanged option
- Oxygen-degreased version available
- ATEX and PED certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
The stainless steel third stage regulator in 3/4 and 1 inch sizes, taking a pre-reduced supply down to millibar outlet pressures across 5 to 50 and 20 to 1000 mbar ranges. AISI 316L throughout suits corrosive and high purity duty at low pressure, and a degreased version is available for oxygen service. ATEX certified alongside PED, with flanged connections available.
Conformity
PED 2014/68/EU; ATEX 2014/34/EU
Specification
| Maximum Inlet Pressure | 10 bar |
|---|---|
| Setting Range | 5 to 50 mbar / 20 to 1000 mbar |
| In/Out Connections | 3/4 and 1 in (G-F / NPT-F); flanged available |
| Temperature | -25 to +130 C |
| Weight | 8 kg |
| Inner Parts | AISI 316L stainless steel |
| Body Material | AISI 316L stainless steel |
| Kv (EN 60534) | 1.5 / 8.5 m3/h by range |
Gases
Hydrogen
