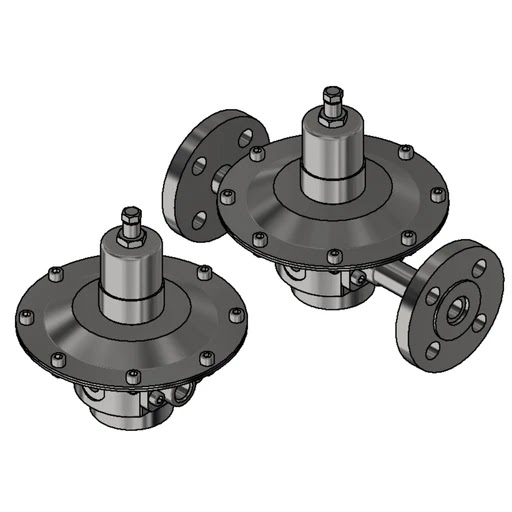

Series PHF CS3 R12 High Flow
Model PHF CS3 R12 · Pipeline Regulators
Pipeline regulator offering balanced-valve stability with low controllable outlet pressure range from 5-1000 mbar.
Maximum Inlet Pressure10 bar
Setting Range5 to 50 mbar / 20 to 1000 mbar
In/Out Connections1/4, 3/8 and 1/2 in (G-F / NPT-F)
Key features
- Millibar control on 1/4 to 1/2 inch lines
- Setting ranges of 5 to 50 and 20 to 1000 mbar
- AISI 316L throughout at 3.6 kg
- Suits instrument and analyser supply lines
- Oxygen-degreased version available
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
The small line size stainless third stage regulator, for millibar outlet control on 1/4 to 1/2 inch pipework. Two setting ranges cover 5 to 50 and 20 to 1000 mbar from a 10 bar inlet, with AISI 316L construction throughout for corrosive and high purity service. A degreased version is available for oxygen duty. At 3.6 kg it suits instrument and analyser lines rather than mains.
Conformity
PED 2014/68/EU
Specification
| Maximum Inlet Pressure | 10 bar |
|---|---|
| Setting Range | 5 to 50 mbar / 20 to 1000 mbar |
| In/Out Connections | 1/4, 3/8 and 1/2 in (G-F / NPT-F) |
| Temperature | -25 to +130 C |
| Weight | 3.6 kg |
| Inner Parts | AISI 316L stainless steel |
| Body Material | AISI 316L stainless steel |
| Kv (EN 60534) | 1.5 m3/h |
Gases
Hydrogen
