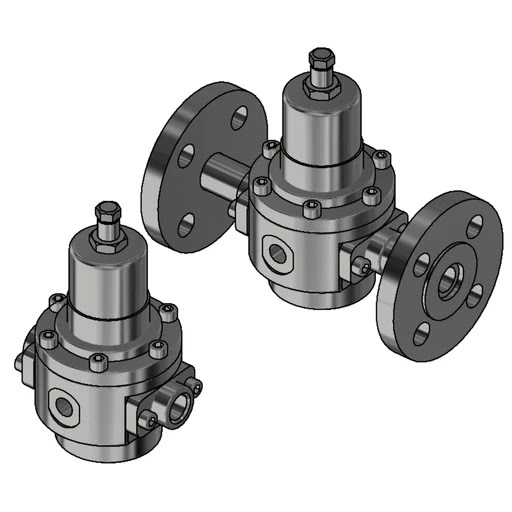

Series PHF CS4 R12 High Flow
Model PHF CS4 R12 · Pipeline Regulators
Pipeline regulator offering balanced-valve stability and high flow performance with diaphragm control. Available in Brass and 316SS or Aluminium.
Maximum Inlet Pressure15 bar
Setting Range0.05 to 1.5 / 0.1 to 3 / 0.1 to 8 bar
In/Out Connections1/4, 3/8 and 1/2 in (G-F / NPT-F); flanged available
Key features
- Diaphragm control for fine, repeatable setting
- Ranges from 0.05 to 1.5 bar upwards
- 15 bar inlet, 1/4 to 1/2 inch line sizes
- AISI 316L throughout for process duty
- ATEX and PED certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
The fine control unit of the stainless pipeline family, using a diaphragm and balanced shutter for setting ranges that start as low as 0.05 to 1.5 bar, from a 15 bar inlet. That suits duties where the working pressure is small and has to be held exactly, on 1/4 to 1/2 inch pipework in AISI 316L throughout. Service temperatures reach +200 C on FPM seals, with ATEX certification alongside PED.
Conformity
PED 2014/68/EU; ATEX 2014/34/EU
Specification
| Maximum Inlet Pressure | 15 bar |
|---|---|
| Setting Range | 0.05 to 1.5 / 0.1 to 3 / 0.1 to 8 bar |
| In/Out Connections | 1/4, 3/8 and 1/2 in (G-F / NPT-F); flanged available |
| Temperature | -25 to +200 C (FPM seals) / -40 to +175 C (EPDM) |
| Weight | 3.2 kg |
| Inner Parts | AISI 316L stainless steel |
| Body Material | AISI 316L stainless steel |
| Kv (EN 60534) | 1.5 m3/h |
Gases
Hydrogen
