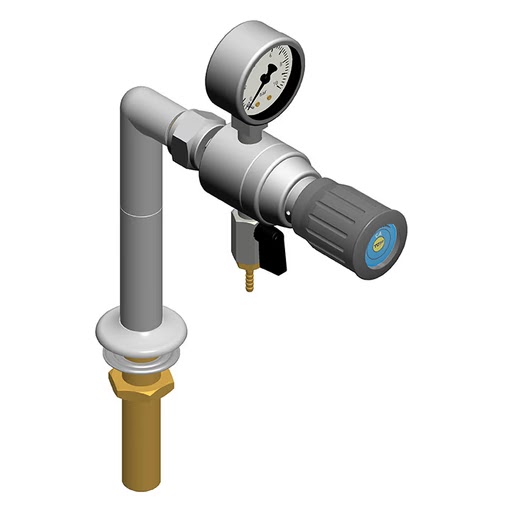

Pressure Regulator Bench Mounted
Bench-Mounted Gas Taps
Fixed bench-mounted regulator providing direct pressure control at laboratory workstations.
In/Out ConnectionsG1/2 or G3/8 parallel thread to ISO 228-1
MountingBench
Key features
- Bench mounted, so the control sits at the workstation
- Fixed installation for a permanent laboratory position
- Direct pressure control at the point the gas is used
- Suits single station benches and teaching laboratories
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A fixed bench mounted regulator that puts pressure control directly at the workstation rather than back at the cylinder or the wall. Mounting it on the bench keeps the adjustment within reach of whoever is running the experiment, so the working pressure can be set and checked without leaving the position. Suited to laboratory benches and teaching spaces where a single supply feeds one station and the pressure needs to be repeatable between users.
Specification
| In/Out Connections | G1/2 or G3/8 parallel thread to ISO 228-1 |
|---|---|
| Mounting | Bench |
| Body Material | Chrome plated brass or AISI 316L stainless steel |
| Diaphragm | Stainless steel |
| Temperature | -20 to +60 C |
| Gas Compatibility | Technical gases and compressed air, to a maximum purity of 6.0 |
| Standard | Colour coding to DIN EN 13792 |
Gases
Hydrogen
