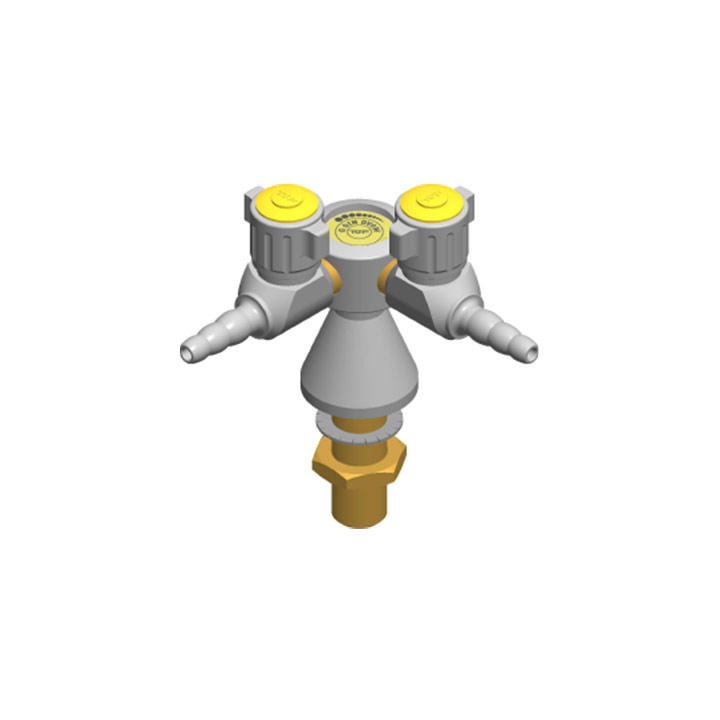

Standout 2 Taps 90deg – Push & Turn
Bench-Mounted Gas Taps
Dual-tap bench mount in 90-degree configuration with push-and-turn operation for flexible workstation layouts.
Outlets2, set at 90 degrees
Gas CompatibilityBurning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version
In/Out ConnectionsG3/8 or G1/2 parallel thread to ISO 228-1
MountingBench
Key features
- Two taps at 90 degrees for corner and run positions
- Push and turn operation on both outlets
- One outlet along the bench, one across it
- Same dual supply as the 180 degree arrangement
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
Two taps on one bench mount at 90 degrees to each other, both push and turn. The right angle arrangement suits a corner position or a bench run where one outlet needs to face along the bench and the other across it. The same two supply capability as the 180 degree version, laid out for a different bench geometry.
Specification
| Outlets | 2, set at 90 degrees |
|---|---|
| Gas Compatibility | Burning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version |
| In/Out Connections | G3/8 or G1/2 parallel thread to ISO 228-1 |
| Mounting | Bench |
| Technology | Push and turn operation, ceramic closure, safety release, no maintenance |
| Outlet Nozzle | Fixed olive form to DIN 12898 |
| Maximum Inlet Pressure | Burning gas 0.2 bar, liquid gas 2 bar, steam 4 bar, compressed air 10 bar, industrial gas 10 bar, depending on the version supplied |
| Body Material | Brass, CuZn40Pb2, epoxy coated |
| Temperature | -30 to +150 C (steam versions to 125 C) |
| Standard | Handle colour coding to DIN EN 13792; burning gas versions to DIN-DVGW |
