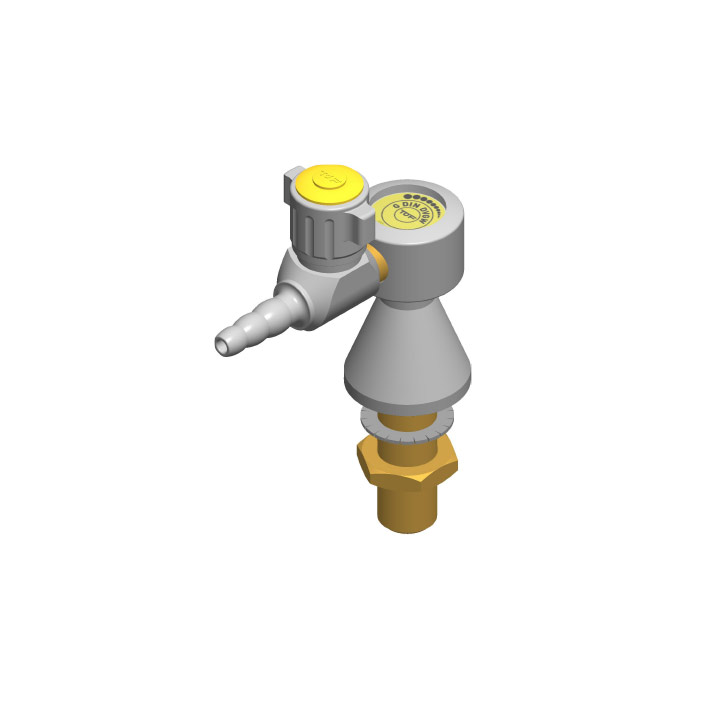

Standout 1 Tap – Push & Turn
Bench-Mounted Gas Taps
Single-tap bench mount with push-and-turn safety operation for controlled gas delivery at laboratory workstations.
Outlets1
Gas CompatibilityBurning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version
In/Out ConnectionsG3/8 or G1/2 parallel thread to ISO 228-1
MountingBench
Key features
- Push and turn operation, so it cannot open accidentally
- Single outlet, bench mounted
- Suited to teaching laboratories and shared benches
- Guards against a tap being knocked open
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A single tap bench mount using push and turn operation. The handle has to be pushed before it will turn, so the tap cannot be opened by a knock or a sleeve catching it in passing. That matters most in teaching laboratories and shared benches, where the same station is used by people of varying experience and an outlet left open is not always noticed.
Specification
| Outlets | 1 |
|---|---|
| Gas Compatibility | Burning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version |
| In/Out Connections | G3/8 or G1/2 parallel thread to ISO 228-1 |
| Mounting | Bench |
| Technology | Push and turn operation, ceramic closure, safety release, no maintenance |
| Outlet Nozzle | Fixed olive form to DIN 12898 |
| Maximum Inlet Pressure | Burning gas 0.2 bar, liquid gas 2 bar, steam 4 bar, compressed air 10 bar, industrial gas 10 bar, depending on the version supplied |
| Body Material | Brass, CuZn40Pb2, epoxy coated |
| Temperature | -30 to +150 C (steam versions to 125 C) |
| Standard | Handle colour coding to DIN EN 13792; burning gas versions to DIN-DVGW |
