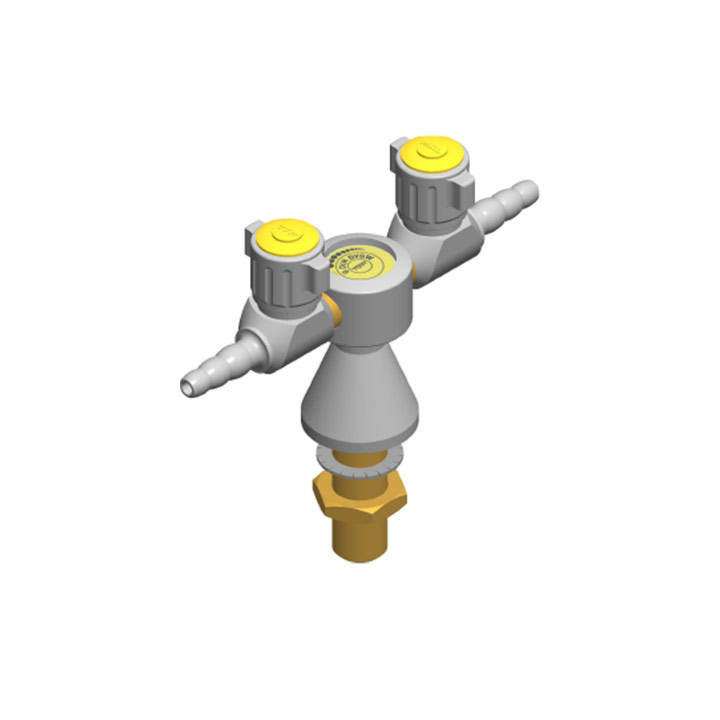

Standout 2 Taps 180deg – Push & Turn
Bench-Mounted Gas Taps
Dual-tap bench mount in 180-degree arrangement with push-and-turn safety mechanism for dual gas supply.
Outlets2, opposed at 180 degrees
Gas CompatibilityBurning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version
In/Out ConnectionsG3/8 or G1/2 parallel thread to ISO 228-1
MountingBench
Key features
- Two taps at 180 degrees, facing opposite working positions
- Push and turn operation on each outlet
- Suits bench islands worked from either side
- Two supplies from one bench fitting
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
Two taps on one bench mount, set opposite each other at 180 degrees, both using push and turn operation. The opposed arrangement suits a bench island where people work from either side, since each tap faces its own position rather than both pointing the same way. Two gases, or two feeds of the same gas, from one fitting rather than two.
Specification
| Outlets | 2, opposed at 180 degrees |
|---|---|
| Gas Compatibility | Burning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version |
| In/Out Connections | G3/8 or G1/2 parallel thread to ISO 228-1 |
| Mounting | Bench |
| Technology | Push and turn operation, ceramic closure, safety release, no maintenance |
| Outlet Nozzle | Fixed olive form to DIN 12898 |
| Maximum Inlet Pressure | Burning gas 0.2 bar, liquid gas 2 bar, steam 4 bar, compressed air 10 bar, industrial gas 10 bar, depending on the version supplied |
| Body Material | Brass, CuZn40Pb2, epoxy coated |
| Temperature | -30 to +150 C (steam versions to 125 C) |
| Standard | Handle colour coding to DIN EN 13792; burning gas versions to DIN-DVGW |
