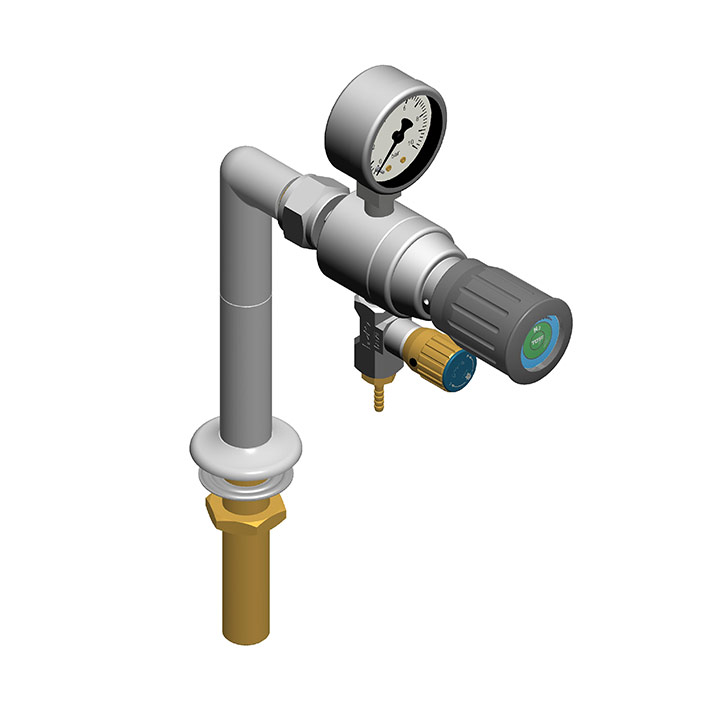

Pressure Regulator Bench Mounted with Outlet Fine Adjustment Valve
Bench-Mounted Gas Taps
Fixed bench-mounted regulator providing direct pressure control at laboratory workstations. Including a Fine Adjustment Valve on the outlet.
In/Out ConnectionsG1/2 or G3/8 parallel thread to ISO 228-1
MountingBench
Key features
- Regulator and fine adjustment valve in one bench assembly
- Outlet valve trims flow after the pressure is set
- Suits instruments needing a steady low delivery
- Both controls stay together at the workstation
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
The bench mounted regulator with a fine adjustment valve added on the outlet. The regulator sets the working pressure and the outlet valve trims the flow beyond it, which matters when an instrument needs a steady low delivery rather than simply a set pressure. Two controls in one assembly, so the coarse and the fine adjustment stay together at the bench instead of being split across the supply line.
Specification
| In/Out Connections | G1/2 or G3/8 parallel thread to ISO 228-1 |
|---|---|
| Mounting | Bench |
| Technology | Pressure regulator with a metering valve on the outlet |
| Body Material | Chrome plated brass or AISI 316L stainless steel |
| Diaphragm | Stainless steel |
| Temperature | -20 to +60 C |
| Gas Compatibility | Technical gases and compressed air, to a maximum purity of 6.0 |
| Standard | Colour coding to DIN EN 13792 |
Gases
Hydrogen
