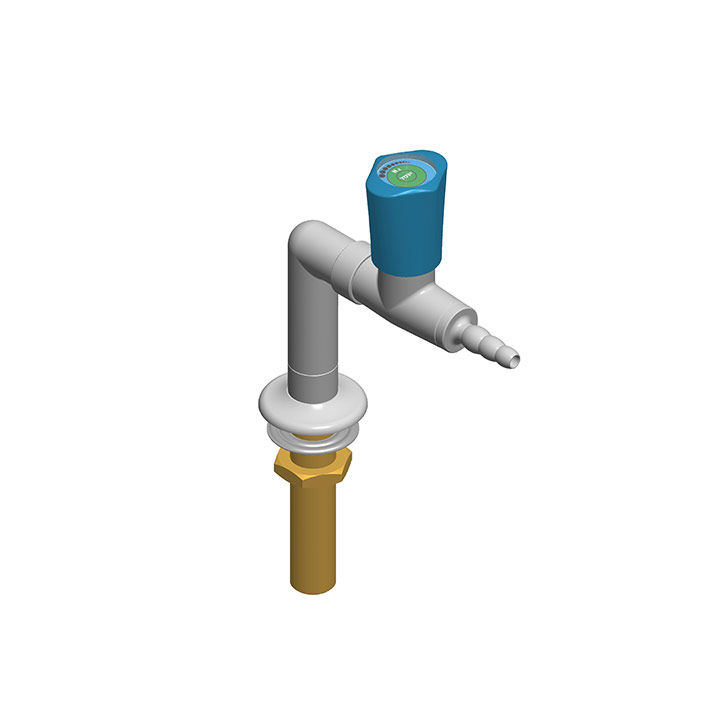

Standout 1 Gas Tap
Bench-Mounted Gas Taps
Single outlet bench-mounted gas tap for standard laboratory gas control applications.
Outlets1
Gas CompatibilityBurning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version
In/Out ConnectionsG3/8 or G1/2 parallel thread to ISO 228-1
MountingBench
Key features
- Single outlet for one gas at one position
- Bench mounted for direct access at the workstation
- Straightforward control for everyday laboratory use
- Suits burner positions and single instrument feeds
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A single outlet bench mounted gas tap for standard laboratory gas control. One tap, one outlet, mounted on the bench surface where the gas is needed. The simplest unit in the bench range and the usual choice where a station needs one gas and nothing more, whether that is a burner position in a teaching laboratory or a single instrument feed.
Specification
| Outlets | 1 |
|---|---|
| Gas Compatibility | Burning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version |
| In/Out Connections | G3/8 or G1/2 parallel thread to ISO 228-1 |
| Mounting | Bench |
| Outlet Nozzle | Fixed olive form to DIN 12898 |
| Maximum Inlet Pressure | Burning gas 0.2 bar, liquid gas 2 bar, steam 4 bar, compressed air 10 bar, industrial gas 10 bar, depending on the version supplied |
| Body Material | Brass, CuZn40Pb2, epoxy coated |
| Temperature | -30 to +150 C (steam versions to 125 C) |
| Standard | Handle colour coding to DIN EN 13792; burning gas versions to DIN-DVGW |
