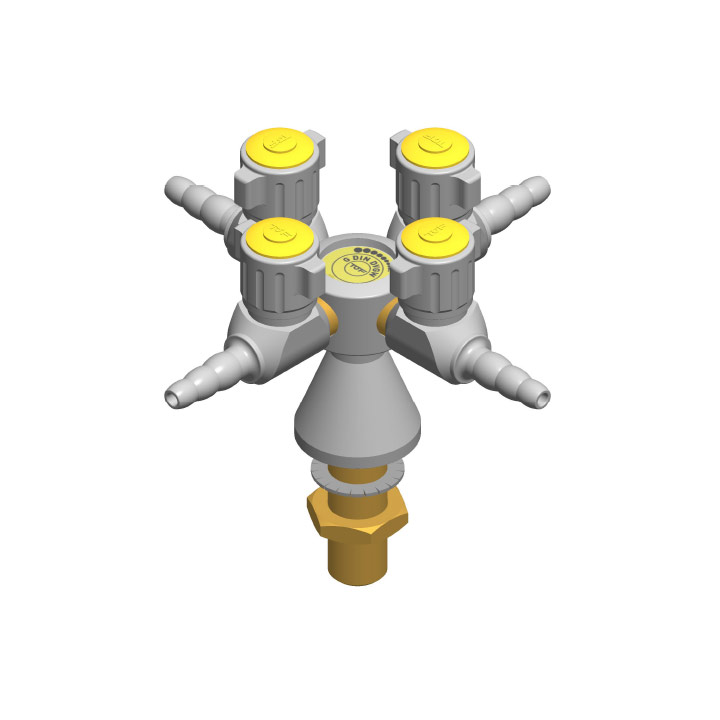

Standout 4 Taps – Push & Turn
Bench-Mounted Gas Taps
Four-outlet bench mount with push-and-turn controls for multi-gas delivery across laboratory workstations.
Outlets4
Gas CompatibilityBurning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version
In/Out ConnectionsG3/8 or G1/2 parallel thread to ISO 228-1
MountingBench
Key features
- Four outlets from one bench fitting
- Push and turn protection on every tap
- Several gases, or several positions, at one station
- One fitting in place of four
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
Four outlets on a single bench mount, each with push and turn operation. This is the unit for a station that needs several gases at once, or one gas at several working positions, from one fitting rather than four separate ones. Push and turn on every outlet keeps the same accidental opening protection across all four.
Specification
| Outlets | 4 |
|---|---|
| Gas Compatibility | Burning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version |
| In/Out Connections | G3/8 or G1/2 parallel thread to ISO 228-1 |
| Mounting | Bench |
| Technology | Push and turn operation, ceramic closure, safety release, no maintenance |
| Outlet Nozzle | Fixed olive form to DIN 12898 |
| Maximum Inlet Pressure | Burning gas 0.2 bar, liquid gas 2 bar, steam 4 bar, compressed air 10 bar, industrial gas 10 bar, depending on the version supplied |
| Body Material | Brass, CuZn40Pb2, epoxy coated |
| Temperature | -30 to +150 C (steam versions to 125 C) |
| Standard | Handle colour coding to DIN EN 13792; burning gas versions to DIN-DVGW |
