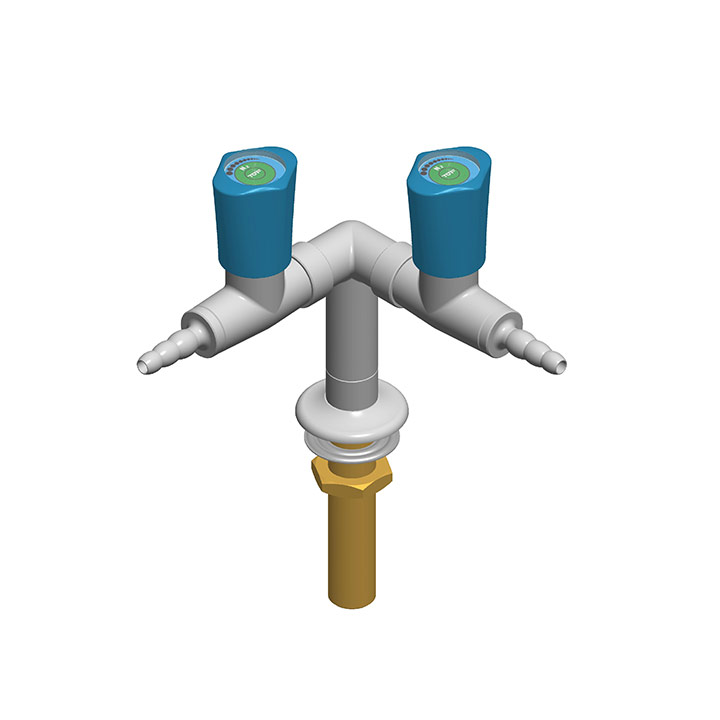

Standout 2 Taps – Y - Distribution
Bench-Mounted Gas Taps
Dual-outlet bench mount with Y-distribution format for flexible gas delivery configurations.
Outlets2, Y branched from one supply
Gas CompatibilityBurning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version
In/Out ConnectionsG3/8 or G1/2 parallel thread to ISO 228-1
MountingBench
Key features
- Y format branches one supply into two outlets
- Clearance between the two working points
- Suits stations where both outlets run at once
- Bench mounted from a single fitting
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A dual outlet bench mount in Y distribution format, where one supply feeds two outlets that branch away from a common stem. The Y layout gives clearance between the two working points, which helps when both outlets are in use at once and hoses would otherwise crowd each other at the bench surface.
Specification
| Outlets | 2, Y branched from one supply |
|---|---|
| Gas Compatibility | Burning gas, liquid gas, technical gas, compressed air, vacuum or steam, by version |
| In/Out Connections | G3/8 or G1/2 parallel thread to ISO 228-1 |
| Mounting | Bench |
| Outlet Nozzle | Fixed olive form to DIN 12898 |
| Maximum Inlet Pressure | Burning gas 0.2 bar, liquid gas 2 bar, steam 4 bar, compressed air 10 bar, industrial gas 10 bar, depending on the version supplied |
| Body Material | Brass, CuZn40Pb2, epoxy coated |
| Temperature | -30 to +150 C (steam versions to 125 C) |
| Standard | Handle colour coding to DIN EN 13792; burning gas versions to DIN-DVGW |
