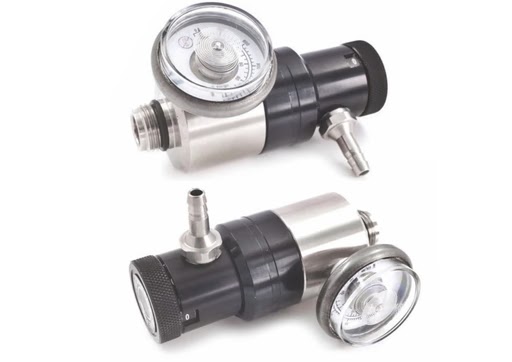

ACR-201/203 Dial-A-Flow Calibration Regulator - Brass
Offers a selection of preset constant flow rates through its single-stage design. A top-mounted dial allows users to manually adjust.
Key features
- Twelve dial positions, three flow ranges to order, off position on the dial
- ACR-201: C10 cylinder inlet, 83 bar maximum, gauge to 103 bar
- ACR-203: 1/4 in NPT female inlet, 207 bar maximum, gauge to 220 bar
- 3/16 in barb outlet on both
- Brass piston with PTFE, Viton and Buna-N seals, for non-reactive gases
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe ACR-201 and ACR-203 are the brass dial-a-flow regulators for calibration gas, for sites that calibrate several detectors at different flow rates and want one regulator rather than a drawer of fixed ones. A top mounted dial selects from twelve preset positions across one of three ranges chosen at order: 0 to 8 litres per minute, 0 to 3 litres per minute in finer steps, or 0 to 15 litres per minute, with the first position on each dial being off. The two models differ at the inlet. The ACR-201 takes the 5/8 inch by 18 UN C10 cylinder thread at up to 83 bar with a brass gauge to 103 bar, and the ACR-203 is the high pressure version with a 1/4 inch NPT female inlet rated to 207 bar and a gauge to 220 bar. Both have a 3/16 inch barb outlet, a brass piston, PTFE, Viton and Buna-N seals and an anodised aluminium bonnet, and both are for non-reactive gases. They weigh 0.35 and 0.40 kg.
Specification
| Maximum Inlet Pressure | 83 bar (ACR-201, C10 inlet); 207 bar (ACR-203, high pressure inlet) |
|---|---|
| In/Out Connections | ACR-201: 5/8 in x 18 UN (C10) inlet; ACR-203: 1/4 in NPT female inlet; 3/16 in barb outlet on both |
| Gas Compatibility | Non-reactive gases, brass version |
| Stages | single stage |
| Weight | 0.35 kg (ACR-201); 0.40 kg (ACR-203) |
| Gauge | Inlet gauge, brass; 0 to 103 bar (ACR-201) or 0 to 220 bar (ACR-203) |
| Material | Brass piston; PTFE, Viton and Buna-N seals; anodised aluminium neck and bonnet |
| Flow Rate | Twelve dial positions; ranges to order of 0 to 8, 0 to 3 or 0 to 15 L/min |
| Technology | Piston, dial selected flow |
