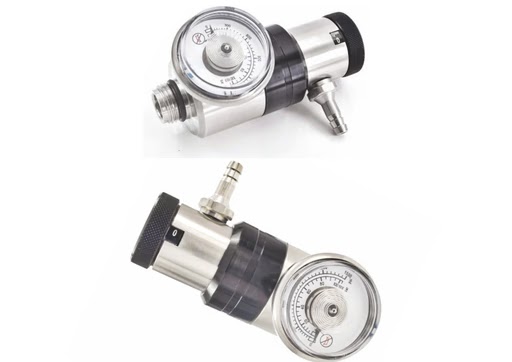

ACR-202/204 Dial-A-Flow Calibration Regulator - St/St
Provides a series of preset constant flow rates using a single-stage mechanism. The adjustable dial enables quick manual selection.
Key features
- Stainless steel version for reactive gases
- Twelve dial positions, three flow ranges to order, off position on the dial
- ACR-202: C10 cylinder inlet, 83 bar maximum, gauge to 103 bar
- ACR-204: 1/4 in NPT female inlet, 207 bar maximum, gauge to 220 bar
- 3/16 in barb outlet, stainless steel neck and piston
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe ACR-202 and ACR-204 are the stainless steel dial-a-flow regulators for calibration gas, for reactive gases and for sites that prefer stainless throughout. A top mounted dial selects from twelve preset positions across one of three ranges chosen at order: 0 to 8 litres per minute, 0 to 3 litres per minute in finer steps, or 0 to 15 litres per minute, with an off position on each dial. The ACR-202 takes the 5/8 inch by 18 UN C10 cylinder thread at up to 83 bar with a stainless steel gauge to 103 bar, and the ACR-204 is the high pressure version with a 1/4 inch NPT female inlet rated to 207 bar and a gauge to 220 bar. Both have a 3/16 inch barb outlet, a stainless steel neck and piston, PTFE, Viton and Buna-N seals and an anodised aluminium bonnet. They weigh 0.38 and 0.43 kg.
Specification
| Maximum Inlet Pressure | 83 bar (ACR-202, C10 inlet); 207 bar (ACR-204, high pressure inlet) |
|---|---|
| In/Out Connections | ACR-202: 5/8 in x 18 UN (C10) inlet; ACR-204: 1/4 in NPT female inlet; 3/16 in barb outlet on both |
| Gas Compatibility | Reactive gases, stainless steel version |
| Stages | single stage |
| Weight | 0.38 kg (ACR-202); 0.43 kg (ACR-204) |
| Gauge | Inlet gauge, stainless steel; 0 to 103 bar (ACR-202) or 0 to 220 bar (ACR-204) |
| Material | Stainless steel neck and piston; PTFE, Viton and Buna-N seals; anodised aluminium bonnet |
| Flow Rate | Twelve dial positions; ranges to order of 0 to 8, 0 to 3 or 0 to 15 L/min |
| Technology | Piston, dial selected flow |
