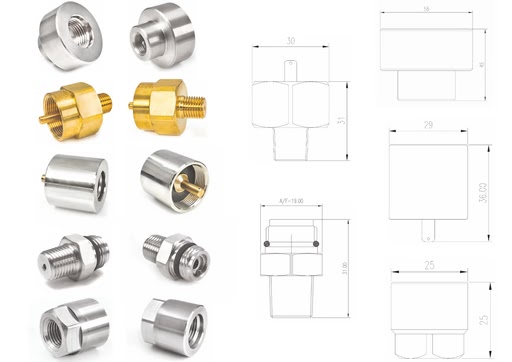

Adaptors 07 Series
Robust selection of high-quality fittings designed to ensure secure leak-tight connections across a wide range of gas handling.
Key features
- Aerosol, C10, CGA 600 and CGA 165 joins by model
- Nickel plated brass or stainless steel construction
- Stainless steel aerosol adaptor rated to 20 bar working pressure
- Lets one calibration regulator serve cylinders of more than one thread
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe 07 Series is the range of adaptors that lets a calibration gas regulator meet a cylinder or fitting it was not threaded for. It covers the joins that come up most in detector calibration: an aerosol can outlet to a C10 female thread, a CGA 600 female to a C10 female, a C10 male to a CGA 600 male, and a C10 female to a CGA 165 female, in nickel plated brass or stainless steel by model. The stainless steel aerosol adaptor is rated to 20 bar working pressure. Where a regulator has the wrong inlet for the cylinder in hand, the adaptor is the answer; tell us the two threads and we supply the model that joins them.
Specification
| Maximum Inlet Pressure | 20 bar working pressure on the stainless steel aerosol adaptor; others by model |
|---|---|
| In/Out Connections | Aerosol to C10 female; CGA 600 female to C10 female; C10 male to CGA 600 male; C10 female to CGA 165 female |
| Material | Nickel plated brass or stainless steel, by model |
Gases
Downloads
No documents on file for this product yet.
