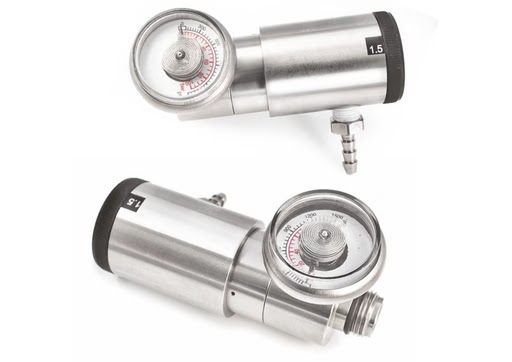

CR-301 Vari-Flow Calibration Regulator
Offers a selectable range of preset constant flow rates using a single-stage design. The top-mounted dial allows users to change flow.
Key features
- Twelve dial positions, three flow ranges to order, off position on the dial
- 5/8 in x 18 UN C10 cylinder inlet, 3/16 in barb outlet
- 83 bar maximum inlet, stainless steel gauge to 103 bar
- Stainless steel body, neck and piston, for reactive gases
- PTFE, Viton and Buna-N seals, 0.46 kg
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe CR-301 is a stainless steel vari-flow regulator for calibration gas, selecting the flow rate from a top mounted dial rather than delivering one fixed figure. Twelve dial positions cover one of three ranges chosen at order, 0 to 8 litres per minute, 0 to 3 litres per minute in finer steps, or 0 to 15 litres per minute, with the first position off. The inlet is the 5/8 inch by 18 UN C10 cylinder thread rated to 83 bar, with a stainless steel inlet gauge reading to 103 bar, and the outlet is a 3/16 inch barb for detector tubing. The body, neck and piston are stainless steel with PTFE, Viton and Buna-N seals and an anodised aluminium bonnet, and the stainless construction is for reactive gases. It weighs 0.46 kg.
Specification
| Maximum Inlet Pressure | 83 bar |
|---|---|
| In/Out Connections | 5/8 in x 18 UN (C10) inlet; 3/16 in barb outlet |
| Gas Compatibility | Reactive gases, stainless steel version |
| Stages | single stage |
| Weight | 0.46 kg |
| Gauge | Inlet gauge, stainless steel, 0 to 103 bar |
| Material | Stainless steel body, neck and piston; PTFE, Viton and Buna-N seals; anodised aluminium bonnet |
| Flow Rate | Twelve dial positions; ranges to order of 0 to 8, 0 to 3 or 0 to 15 L/min |
| Technology | Piston, dial selected flow |
